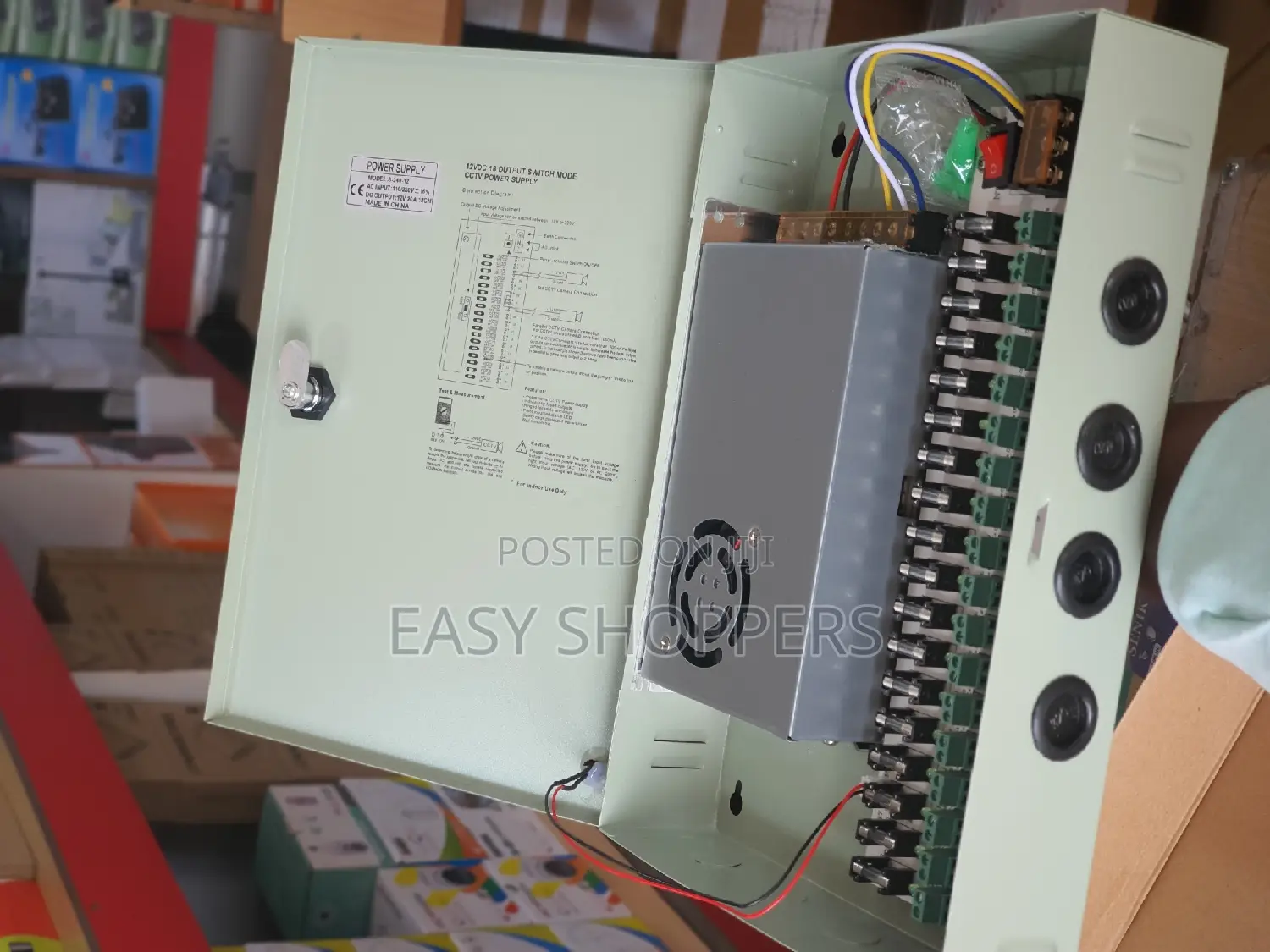

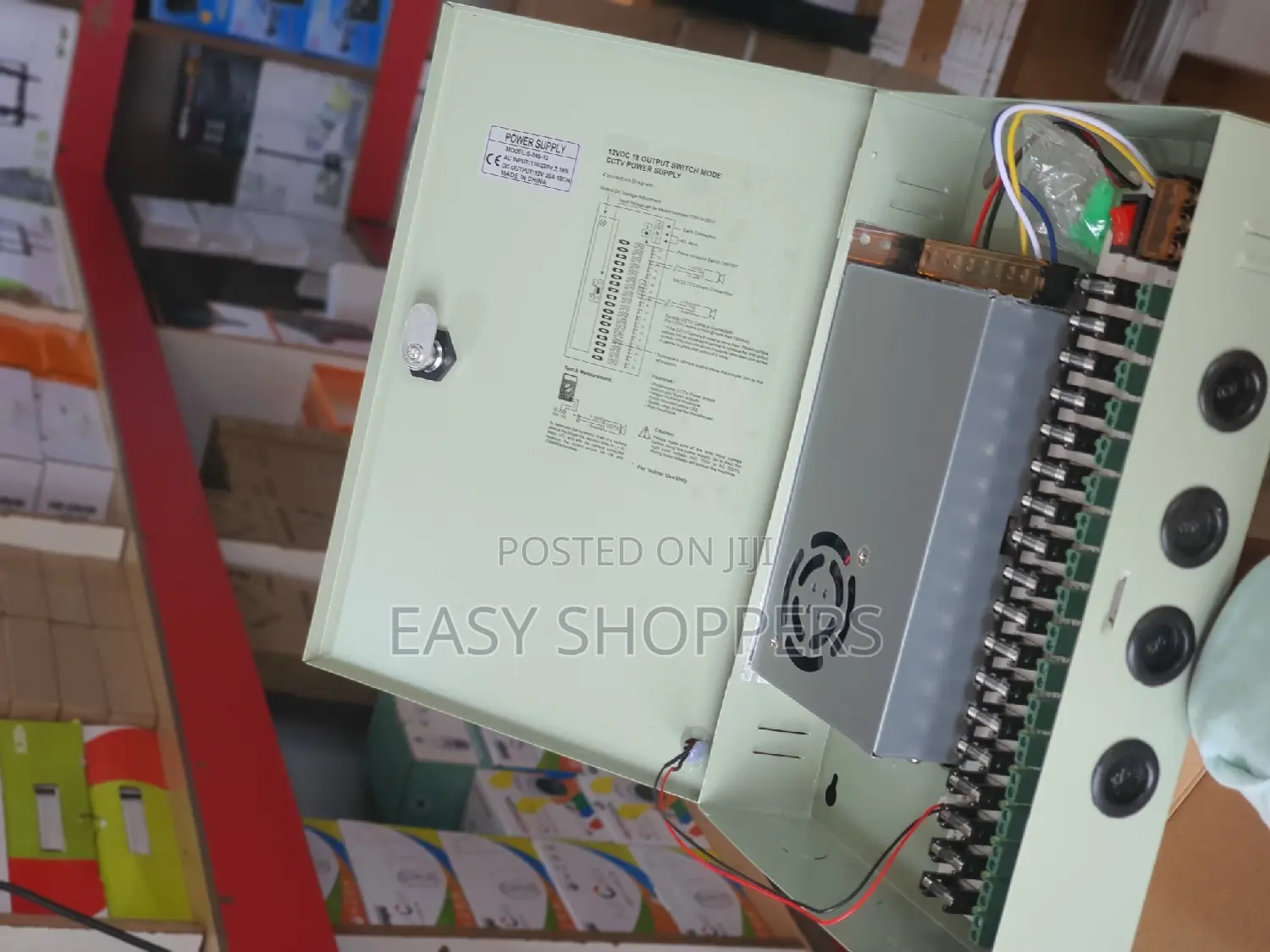

CCTV Camera Fused Power Supply 20A 18 Channels
Security & Surveillance Accessories
Type
Brand New
Condition
Other
Brand
12vdc 18 output switch mode cctv power supply
connection diagram:
input voltage can be slected between 110v or 220v
output dc voltage adjustment
earth connection
ac input
12v30
n
6
ch
panel isolation switch on/off
std cctv camera connection
10
ground
parallel cctv camera connection (for cctv camera's rated more than 1000ma)
if the cctv camera is rated at more than 700ma mulle outputs can be connected in parallel to increase the total output current, in the example shown 3 outputs have been connected in parallel to gibea total output of 2.1amp
to disable a camera output move the jumper link to the off position.
test & measurement:
features:
off on
to determine the current(a) draw of a camera remove the jumper link, set your meter to al amps dc, and with the camera connected measure the current across the on and
