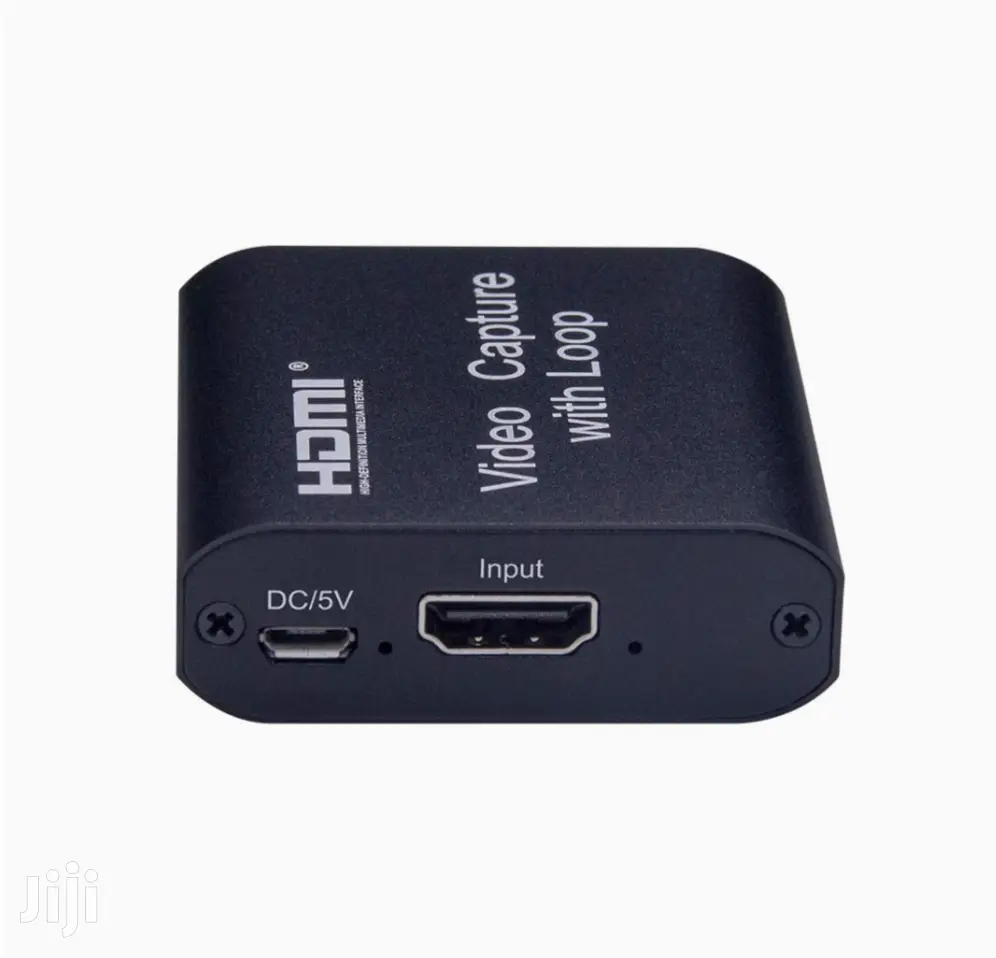

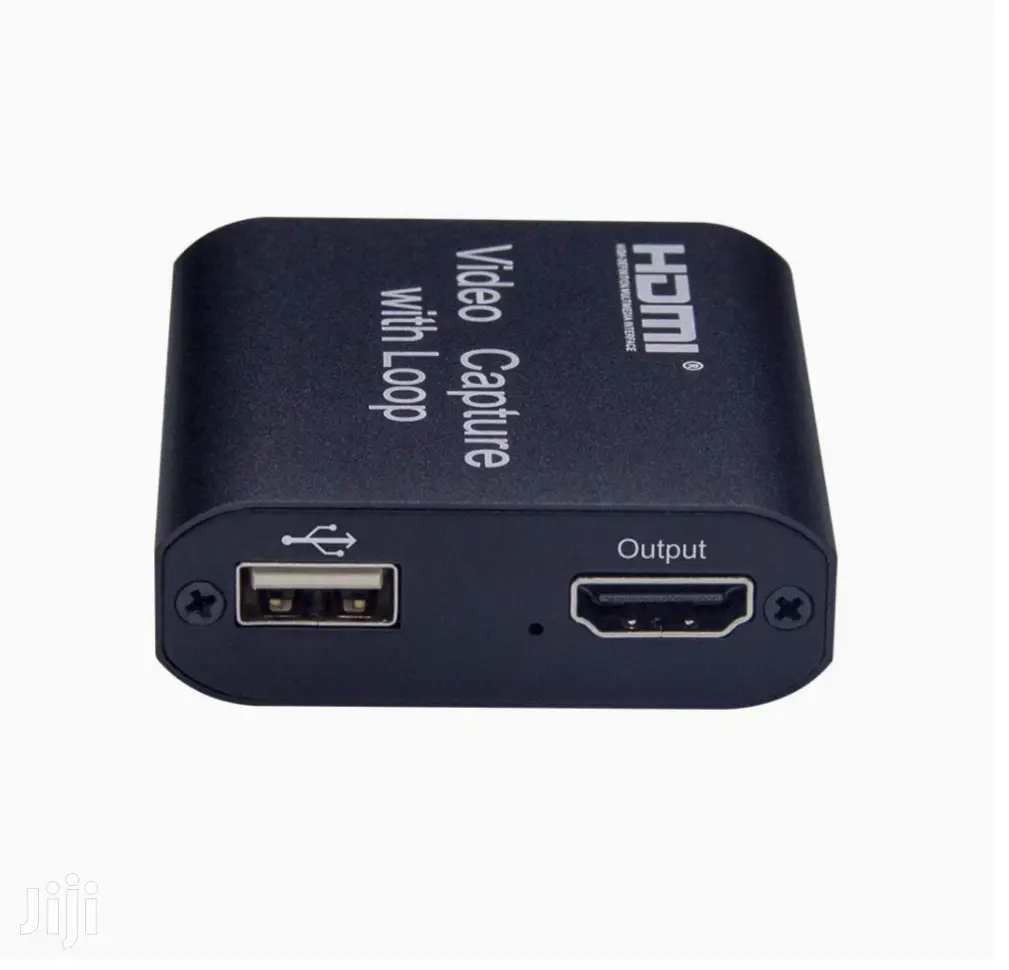

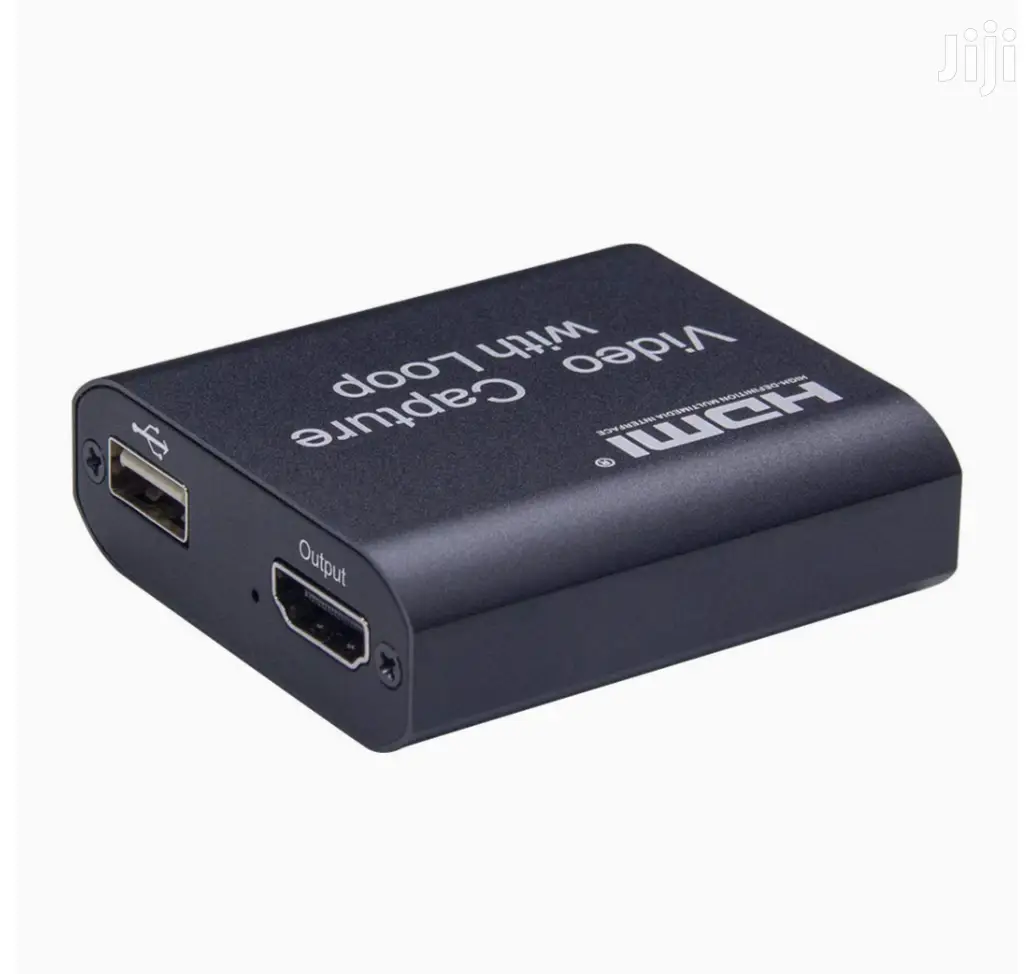

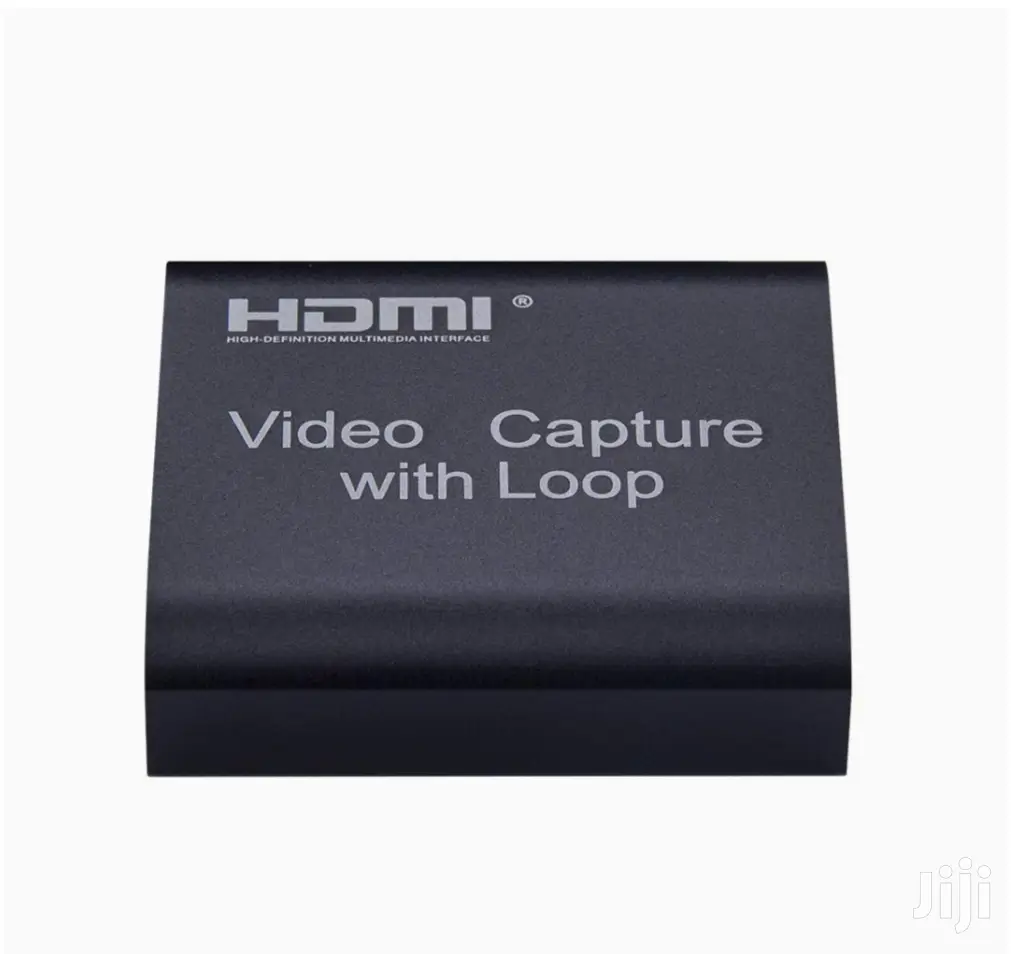

Hdmi Video Capture Card With Loop Out

+1

4

Photo & Video Accessories

Type

Brand New

Condition

Other

Brand

Store address

Kampala • Central Division

Nakasero

We are opposite Nakasero Market

Open

• Mon - Sat, 08:00-18:30

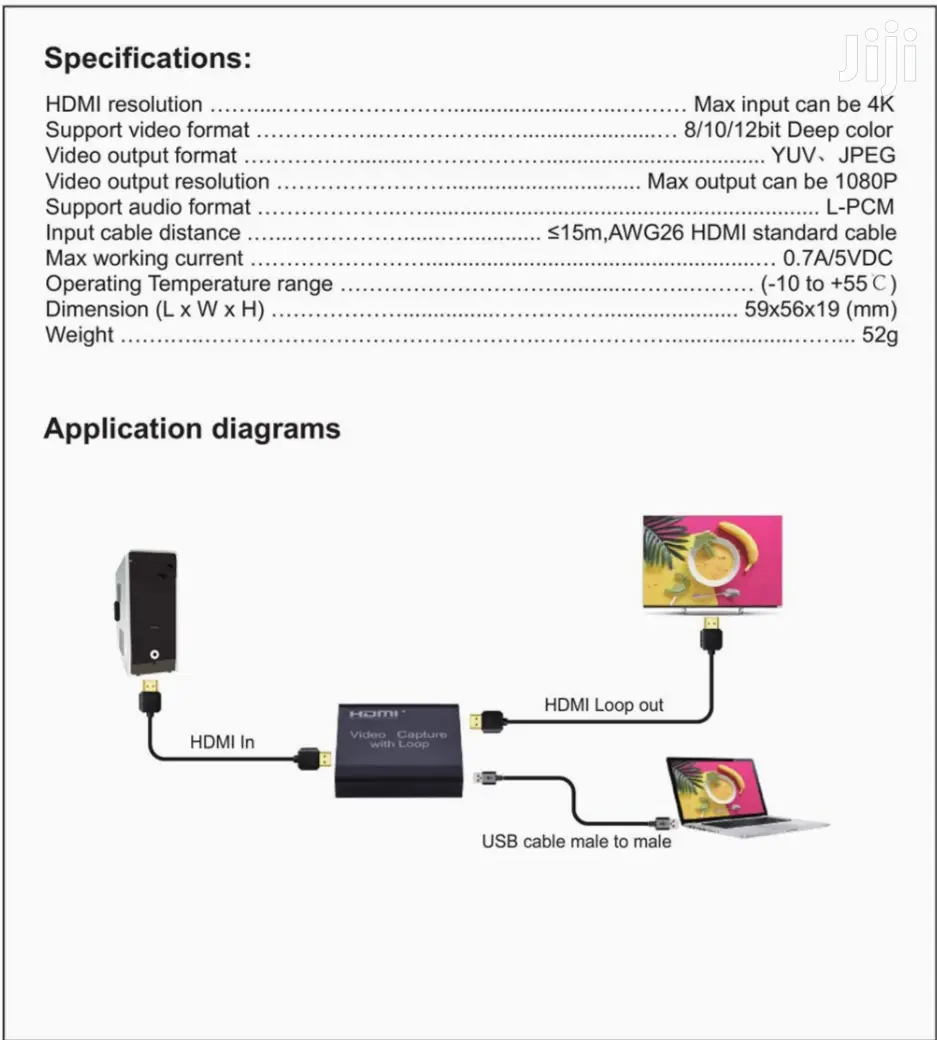

The video capture can capture both hdmi video and hdmi audio, sending audio and video signals to computers and smart phones for preview and storage. Specifications: hdmi resolution:max input can be 4k support video format:8/10/12bit deep color video output format:yuv、jpeg video output resolution:max output can be 1080p support audio format:l-pcm . Input cable distance:≤15m,awg26 hdmi standard cable max working current:0.7a/5vdc 1: connect the uhd signal source to the hdmi input of the video capture with one hdmi cable. 2. Connect the display device to the hdmi output of the video capture with one hdmi cable. 3. Connect pc usb port to the usb output of the video capture with one usb cable. 4: operation steps for usb video capture(obs): open the software-→choose sources of“video capture device"-
