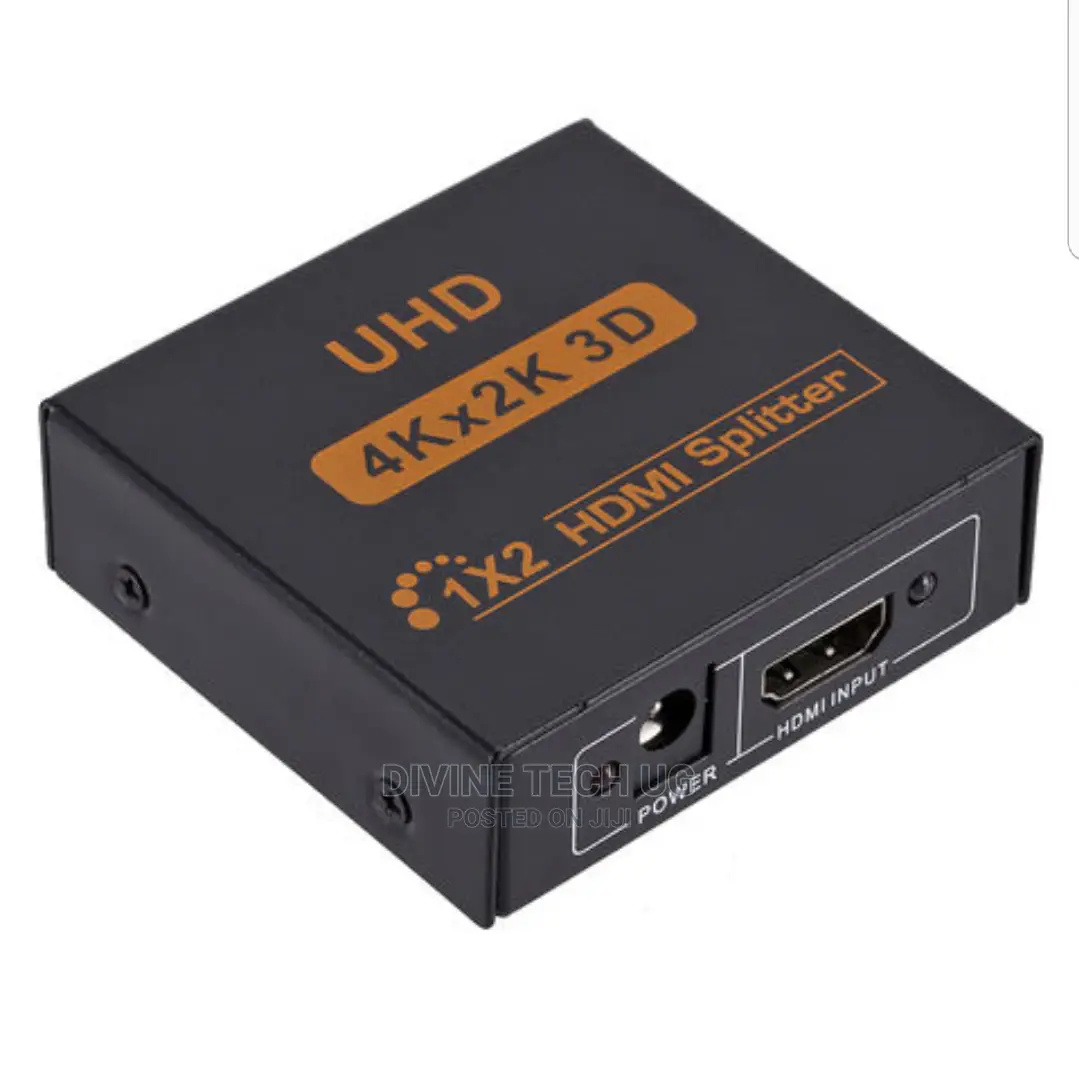

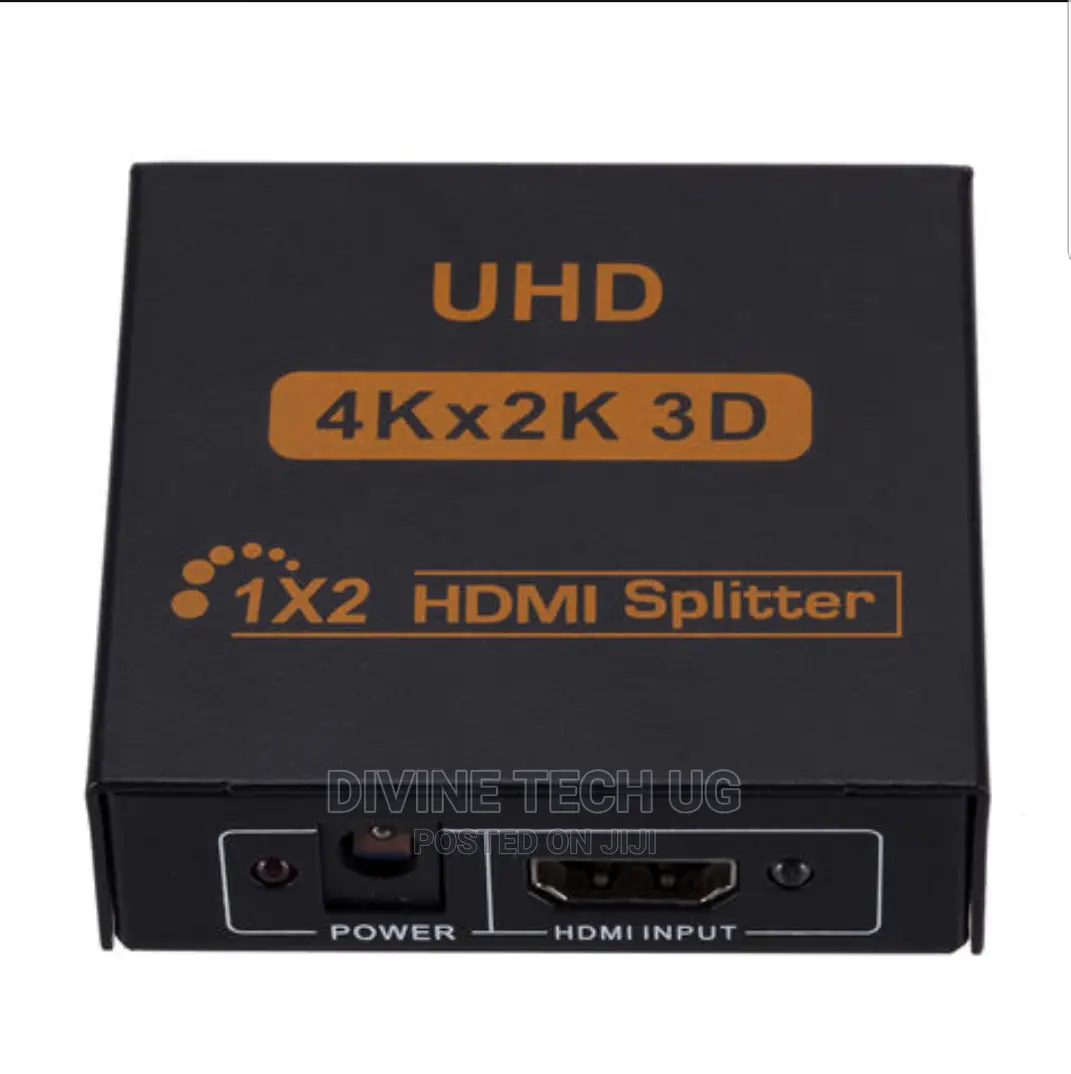

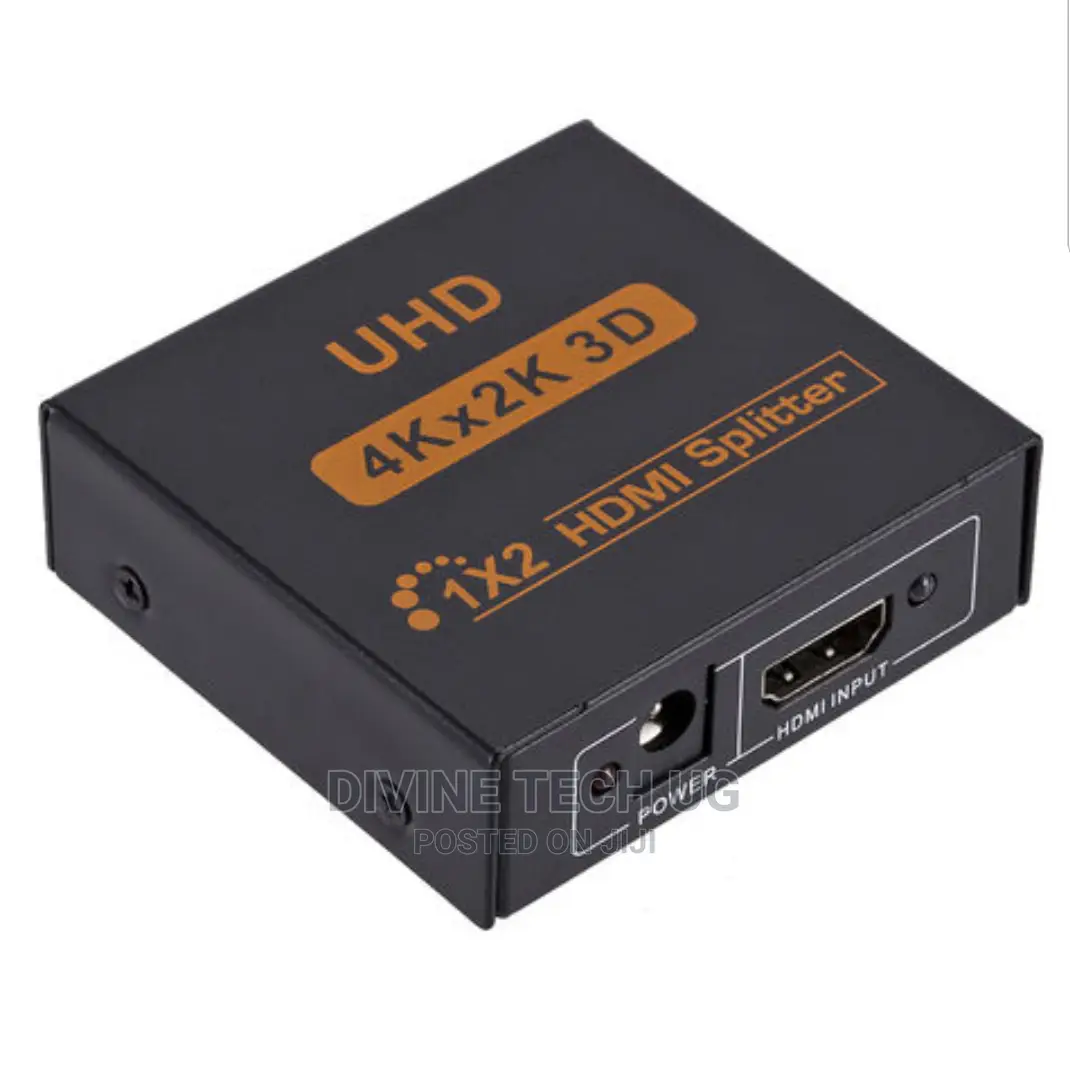

Uhd 4K HDMI Splitter
TV & DVD Accessories
Type
Brand New
Condition
Other
Brand
Store address
Kampala • Central Division
Nakasero -Tourist Hotel building
09:00-18:00

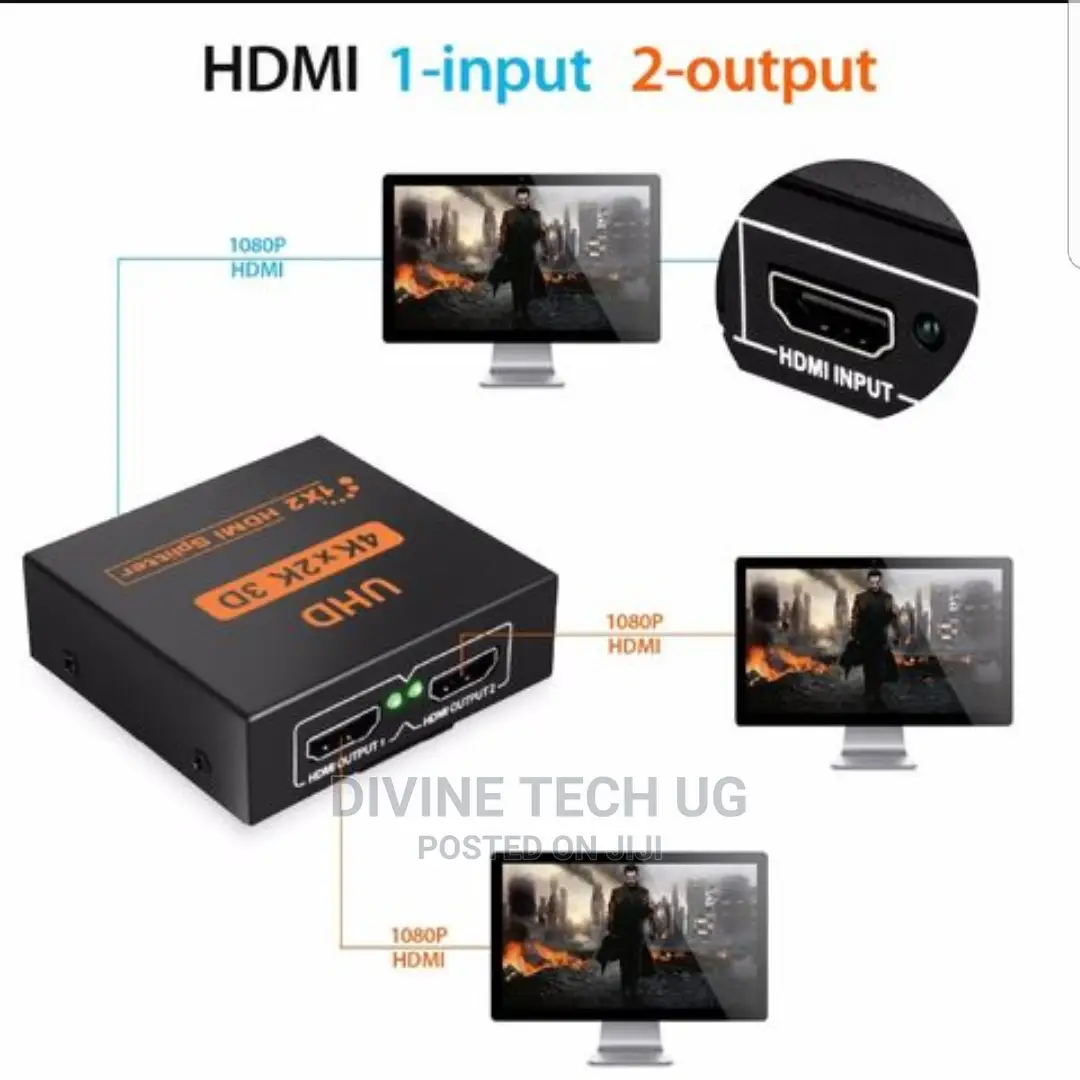

1. an hdmi 1.4v signal input is split into two hdmi 1.4v sink devices
2. support 3d and cec
3. digital audio formats such as dts-hd / dolby-realhd / lpcm7.1 / dts / dolby-ac3 / dsd
5. support signal retiming
product specifications:
input video signal: 0.501.0 volts p-p
input ddc signal: 5 volt p-p (ttl)
maximum single link range: 4k x 2k 30hz
output video: hdmi 1.4a + hdcp1.0 / 1.1 / 1.2 / 1.3
resolution dtv / hdtv: 576i / 576p / 720p / 1080i / 1080p / 4k
hdmi version: hdmi 1.4a
power: dc 5v
digital audio formats: dts-hd / dolby-true-hd / lpcm 7.1 / dts / dolby-ac3 / dsd

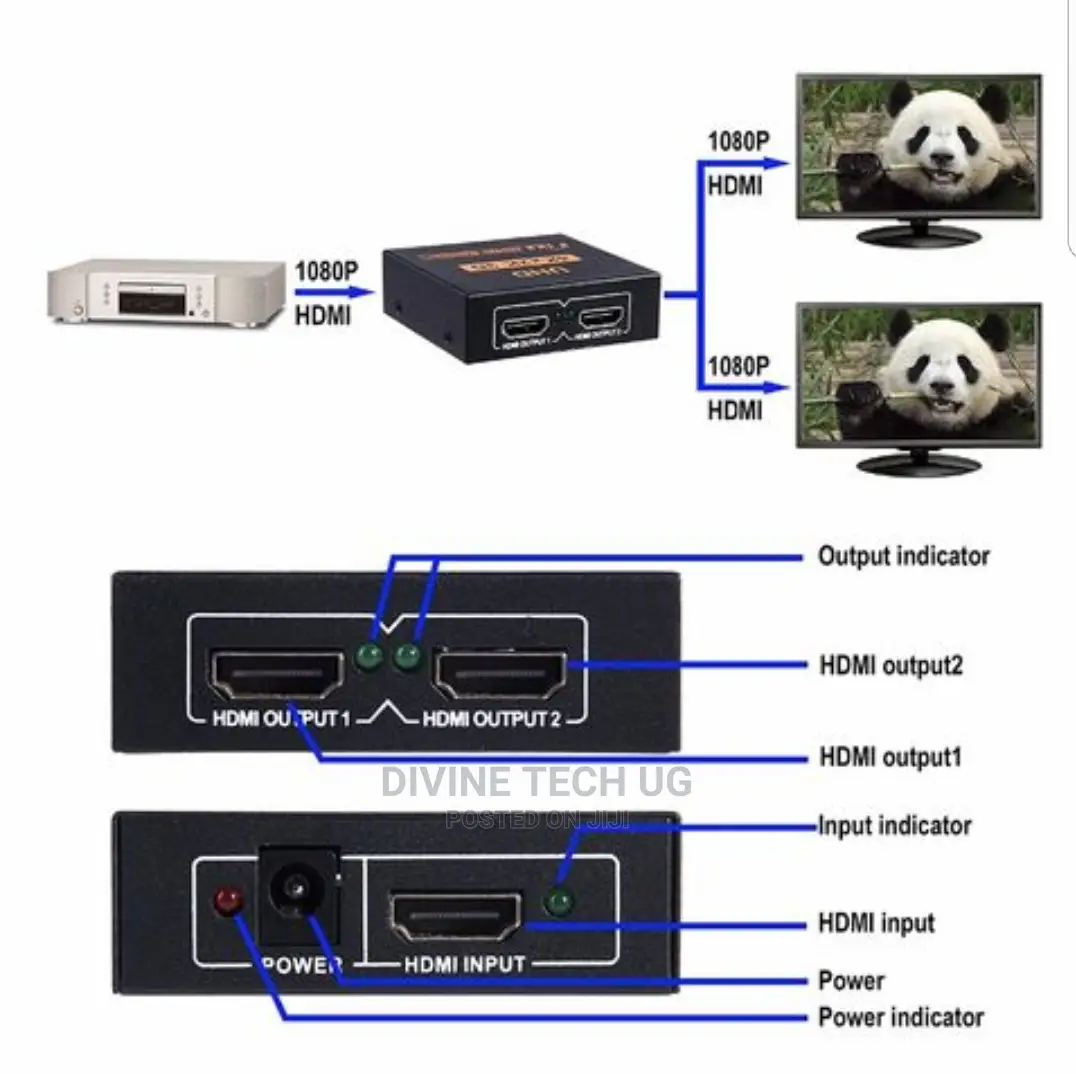

connection:
1. connect the input source and output monitor to the hdmi distributor.
2. connect the dc 5v power to the splitter.
please note that higher voltage power supplies may damage the splitter.
3. when the input source and output display are connected and turned on, the corresponding led will light.
4. usb charging power supply, 5v usb power supply
