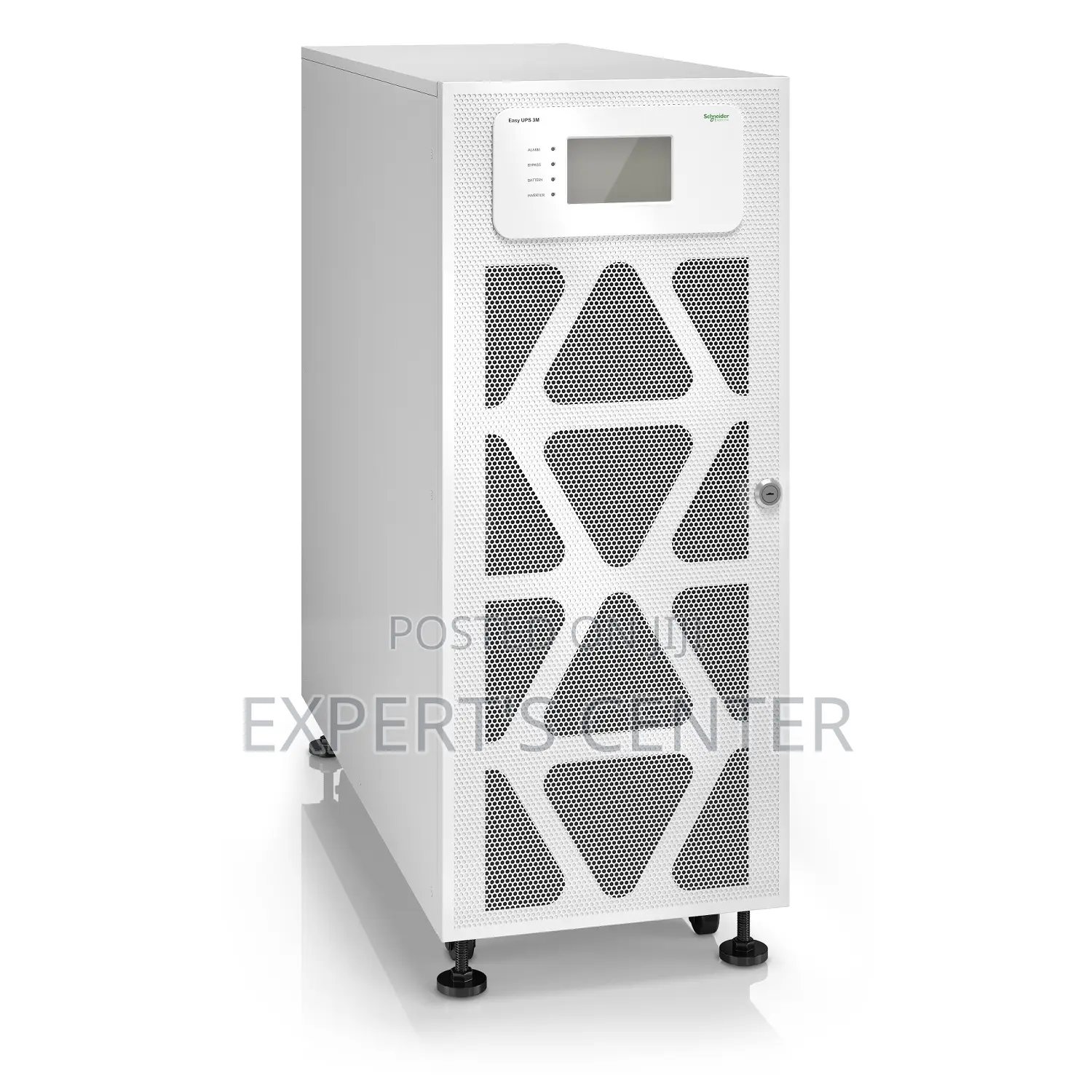

Easy UPS 3M 60kVA 400V 3:3 UPSfor external batteries
Main Input Voltage 400 V AC 3 phases
380 V AC 3 phases
415 V AC 3 phases
Input voltage 380 V
415 V
Maximum input current 104 A
Max short time withstand current 10 kA
Input harmonic distortion Less than 3 % for full load
Load power factor 0.5 leading to 0.5 lagging
Cos phi 0.99
Input voltage limits 342.477 V
Number of input connectors 1 hard wire 5-wire (3P + N + E)
Network frequency 40.70 Hz
Output voltage 400 V AC 3 phases
380 V AC 3 phases
415 V AC 3 phases
Output voltage 380 V
415
rated power in VA 60 kVA
Bypass type Built-in static bypass
Crest factor 3 : 1
Harmonic distortion Less than 3 %
Maximum configurable power in
VA
60 kVA
Output harmonic distortion < 3% linear load and < 5% non-linear load
Output overload operation 10 minutes at 125% and 60 seconds at 150%
