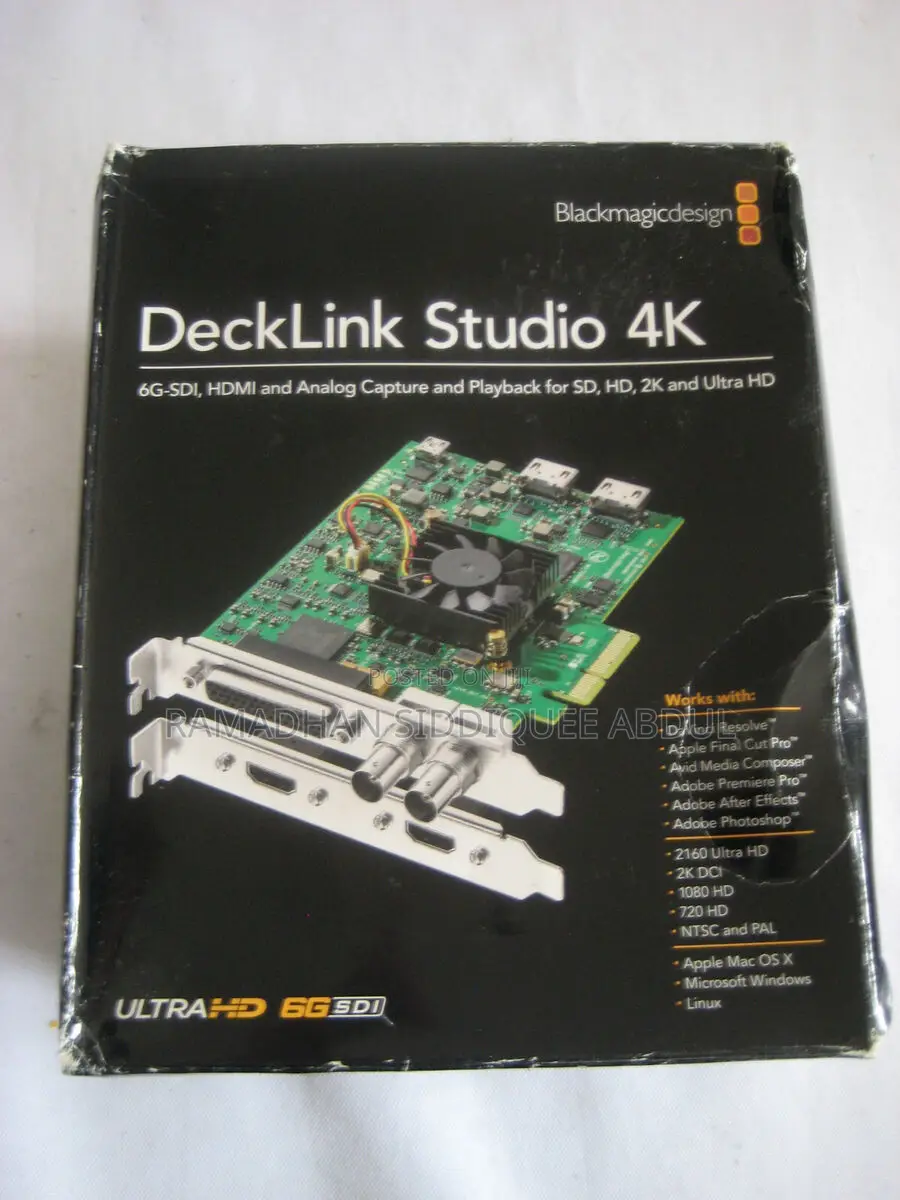

Blackmagic design studio 4k overview

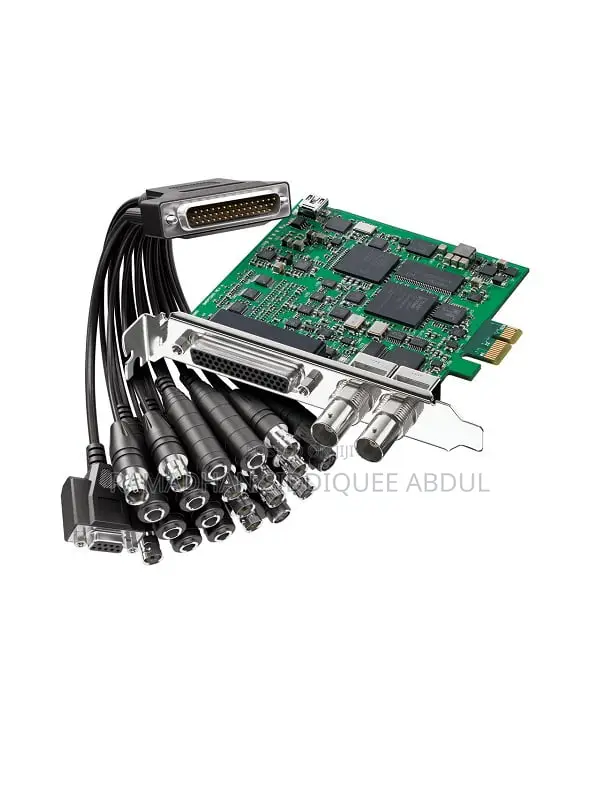

the decklink studio 4k capture & playback card from blackmagic design features 6g-sdi and 4k hdmi inputs/outputs which support resolutions from sd to ultra hd 4k
key features
pcie capture/playback card compatible with mac, windows, and linux based workstations and servers
multi-rate sdi and hdmi connections accept sd, hd, 2k, and 4k resolutions
10-bit, 4:2:2 uhd 4k or dci 4k by single-link 6g-sdi
10-bit, 4:4:4 1080p by single-link 6g-sdi
8-bit rbg / 10-bit yuv hdmi output
hd to sd down-conversion
sd to hd up-conversion
hardware cross conversion between 720p and 1080p on playback
rs-422 deck control
internal sd keying
reference input
blackburst and tri-sync
supports 16 channels of embedded sdi and 8 channels of embedded hdmi audio in hd, 2k, and 4k resolutions (8 channels of embedded sdi audio in sd)
