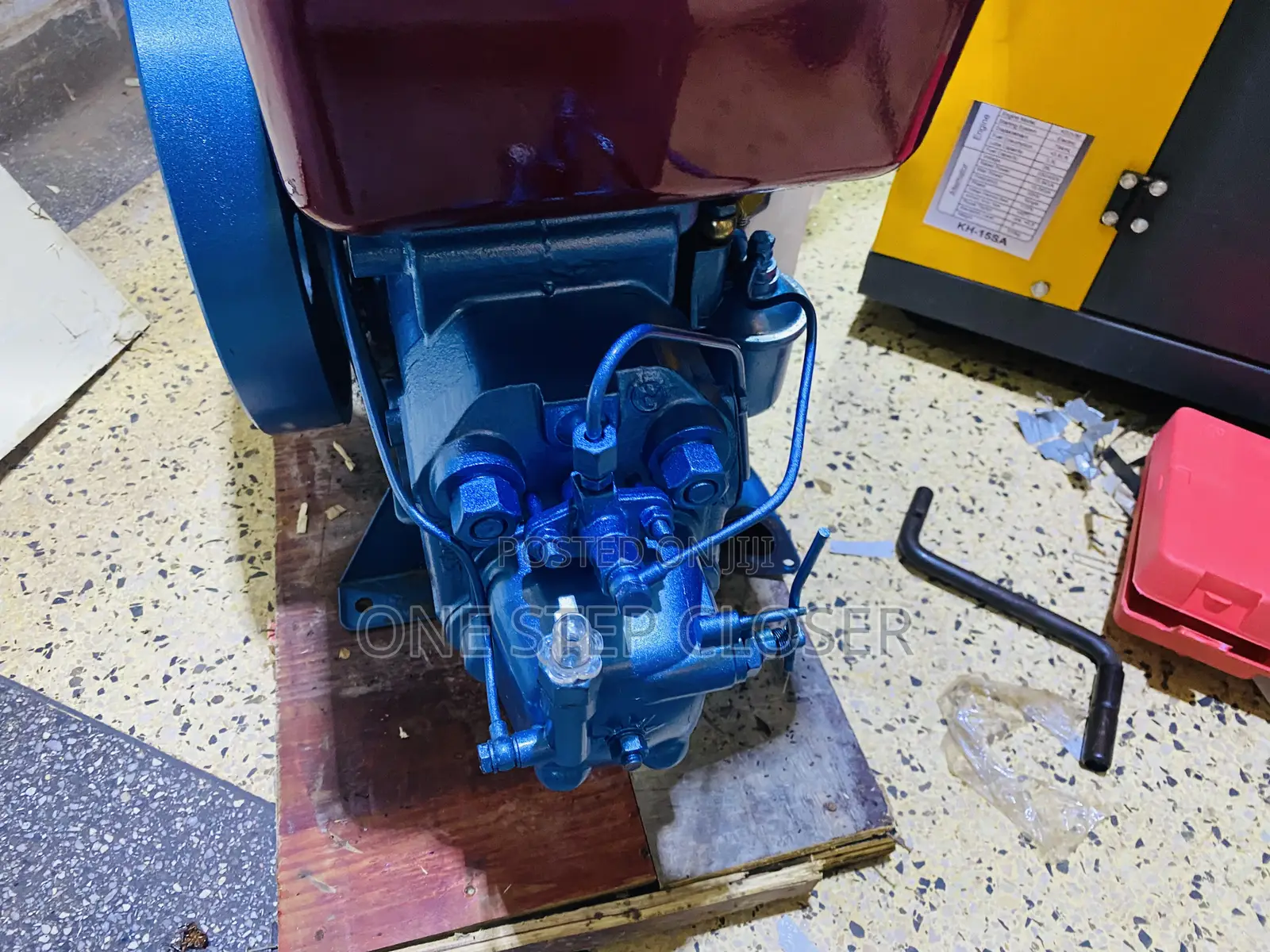

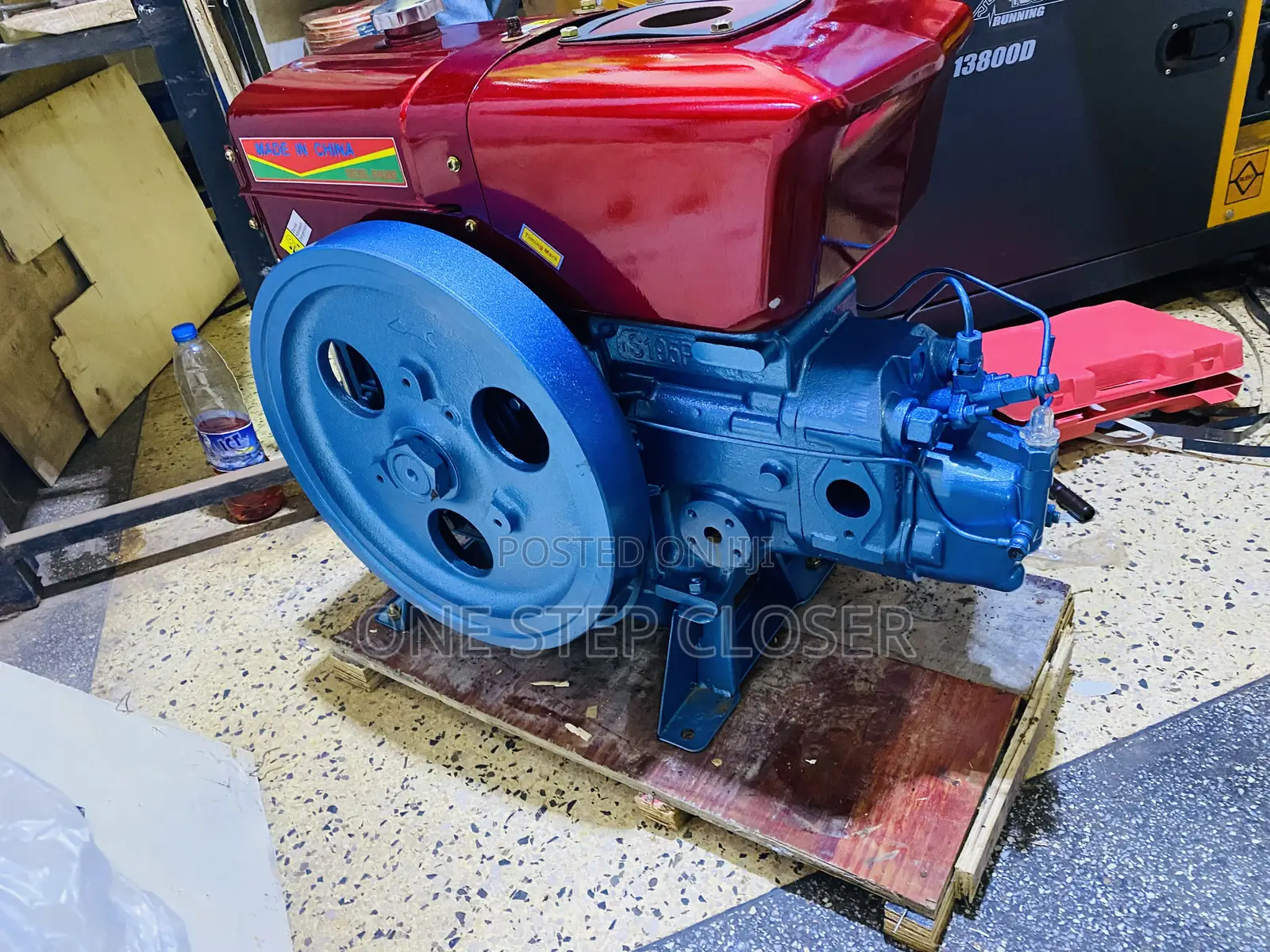

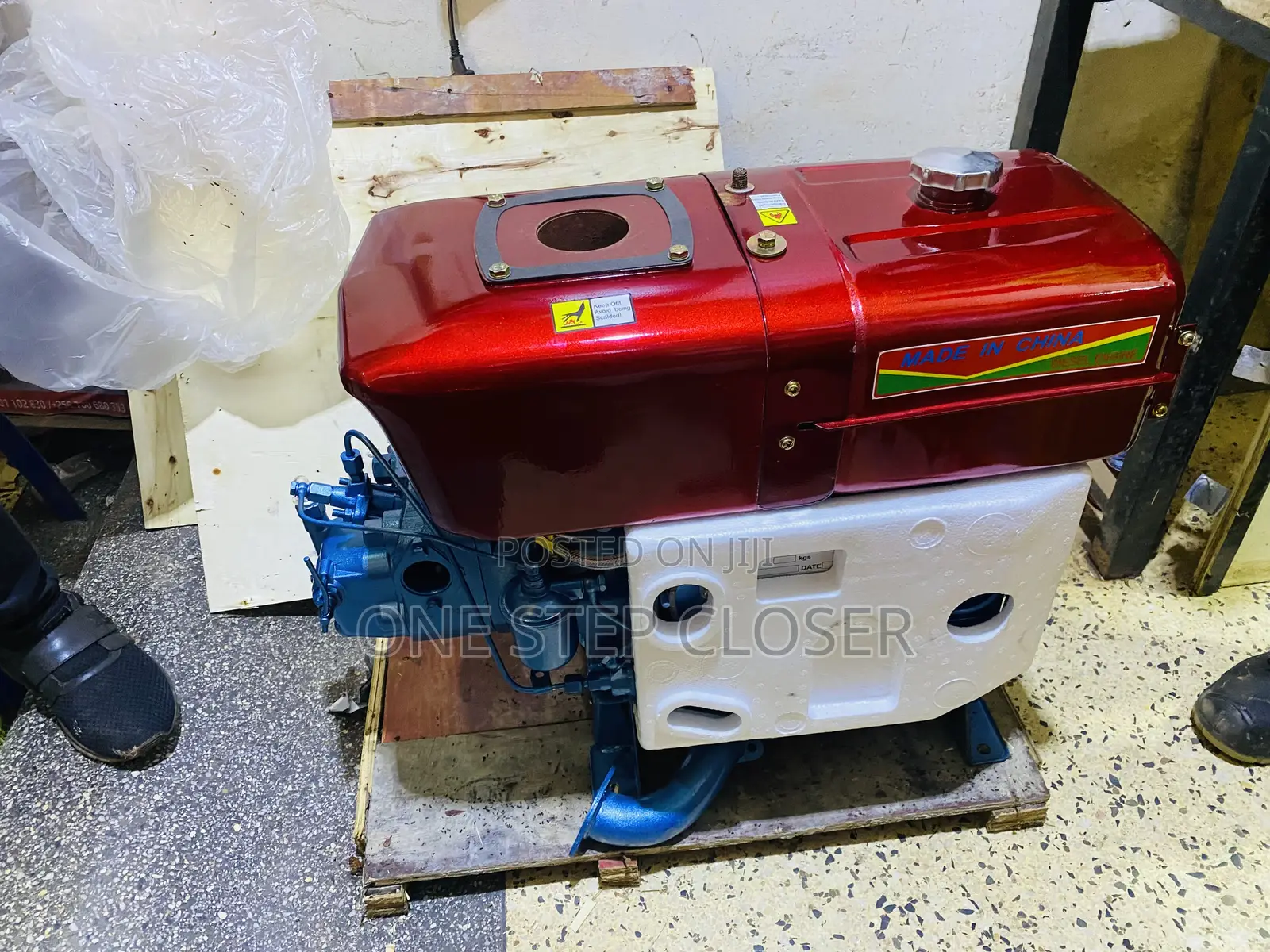

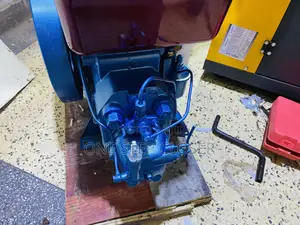

The ZS195 DF engine is a compact, single-cylinder, four-stroke diesel engine designed for various agricultural and industrial applications, The Sawan ZS195 DF engine is known for its stable operation, good combustion performance, and excellent starting capabilities.
Engine Specifications
• Cooling System: Water-cooled (radiator or hopper)
• Combustion System: Direct injection with swirl combustion chamber
• Bore x Stroke: 95 mm × 115 mm
• Displacement: 0.815 liters
• Rated Power: 9.56 kW (13 HP) at 2,200 RPM
• Maximum Power: 13 Hp (9.7 kW)
• Fuel Consumption: Approximately 271 g/kWh
• Lubrication: Combined pressure and splash
• Starting System: Hand start or electric start
• Fuel Tank Capacity: 7.5 liters
• Net Weight: Approximately 145 kg
