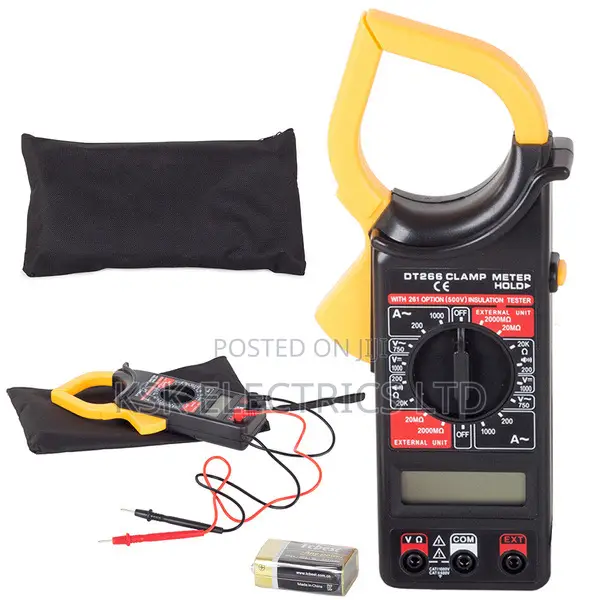

Measurement of DC and AC voltage
Measurement of AC current intensity
Measurement of resistance
Control of circuit continuity
Measurement of current without breaking the circuit
Product code: 11025
DC voltage: 0-1000V (in one range)
AC voltage: 0-750V (single range)
AC current: up to 1000A (in two ranges)
Resistance: 200-20k
Acoustic continuity tester
Display dimensions: 18x43mm
Meter dimensions: 237x31x24mm
Weight: 215 g
HOLD function (storing last measurement)
Meter is CE certified.
TECHNICAL DATA:
- DCV:
1000V +/-(0,8% +/-3)
ACV: 750V +/-(1,2% +/-5)
- ACA:
200A +/-(3% +/-5)
1000A +/-(3% +/-5)
- OHM:
20MOHM +/-(2% +/-2)
2000MOHM +/-(4-5% +/-2)
Transistor test: no
Automatic circuit breaker: yes
Diode test: no
Circuit continuity indication: yes
