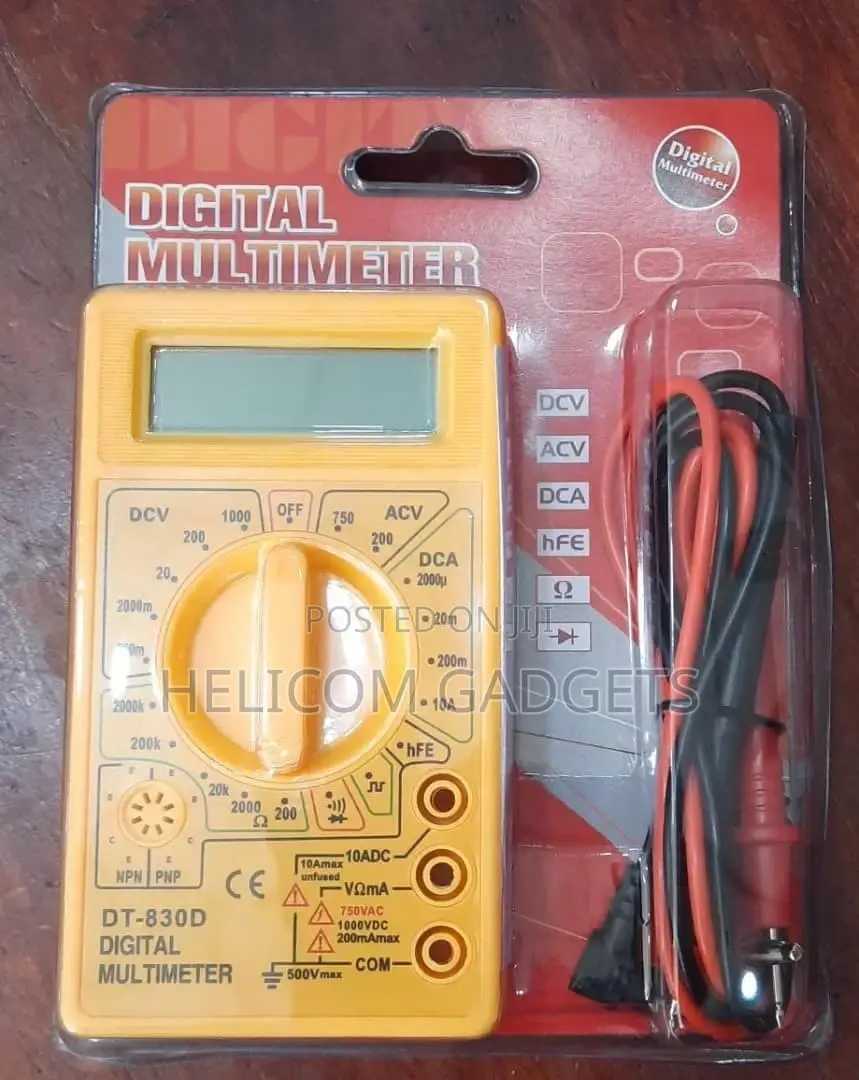

Digital Multimeter
Meter
Type
Brand New
Condition
Features:
the meter is a held 31/2 digital multimeter for measuring dc and ac voltage,dc and ac current,resistance,diode,transistor
specifications:
display: blue back-light lcd, 1999 counts, updates 2-3/sec
measuring method: dual-slope integration a/d converter
operating environment: 0 to 40 °c
power: 9v battery, neda 1604 or 6f22 type(not included)
fuse protection: 200ma/250v
size: 138mm x 69mm x 31mm
weight: approx. 280g
dc voltage:
measurement range 200vmv-600v ±0.5% of rdg ± 2 digits
overload protection: 250v
av voltage:
measurement range 200v-600v ±1.2% ± 10 digits
overload protection: 600vdc or
dc current:
measurement range dc 2000-10a ±1% of rdg ± 2 digits
overload protection: f 200ma/250v fuse (10a range
resistance: measurement range 200 ohms - 2m ohms ±0.8% of rdg ± 3 digits
maximum open circuit voltage: 3.2v
overload protection: 250vdc or rms
transistor: measurement range hfe test
package included:
1* digital multi meter
1 set of test leads
1* user manual
