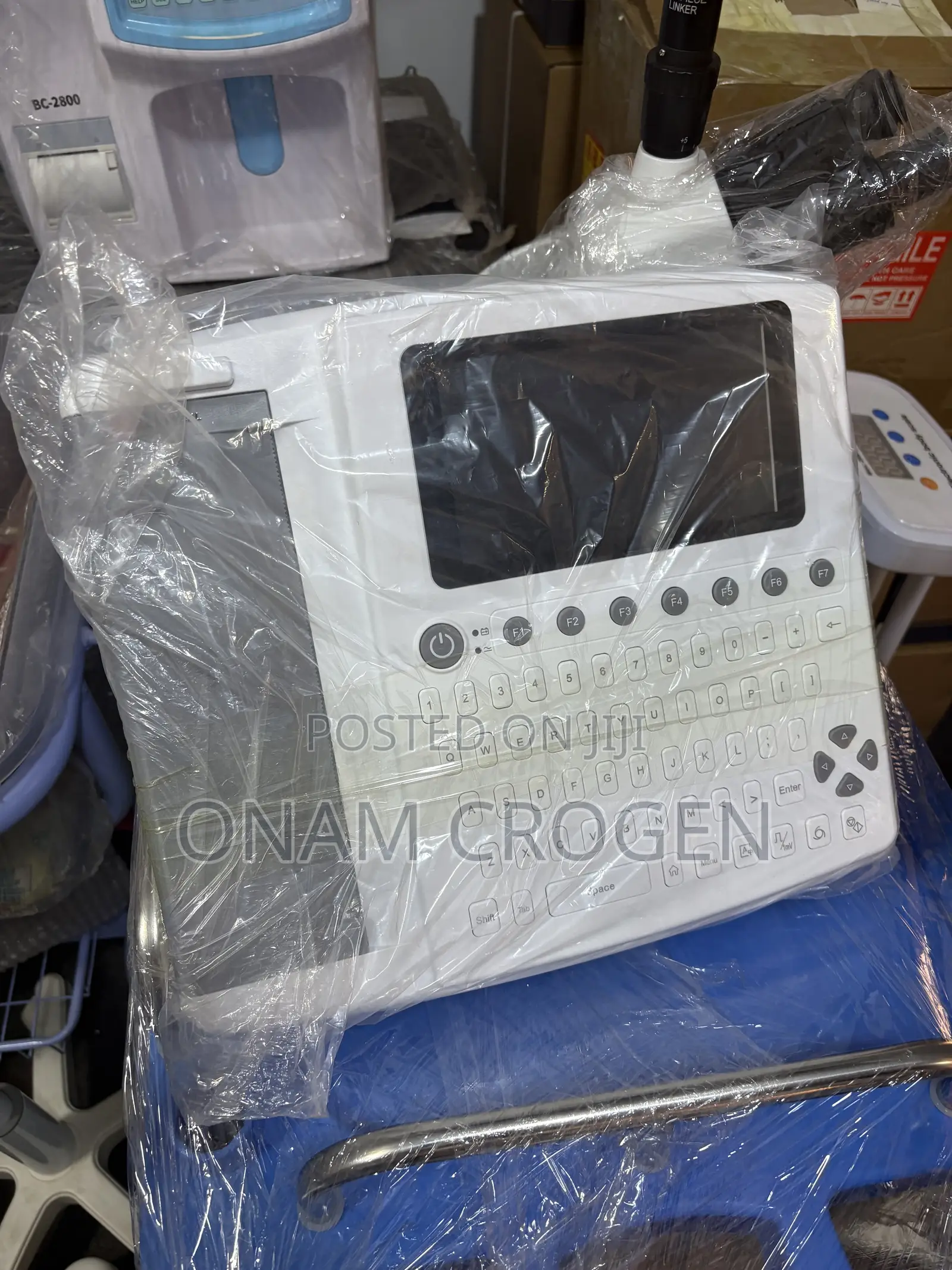

*12-channel ecg machine
- *channels*: 12 simultaneous acquisition
- *display*: 7-12" color lcd, prints 3/6/12 leads
- *lead system*: standard 12-lead + cabrera
- *sampling*: ≥500 hz, 24-bit a/d
- *bandwidth*: 0.05-150 hz, filters for ac/muscle/emg
- *input impedance*: ≥10 mω
- *cmrr*: ≥100 db
- *memory*: 100-1000 patient records internal + usb/sd
- *battery*: li-ion, 2-4 hrs or 200-300 ecgs
- *power*: 110-240v, ∼50va
- *weight*: 2-3.5 kg portable
- *standards*: iec 60601-2-25, aha/esc recommendations
*use*: ward, clinic, opd for diagnostic 12-lead
