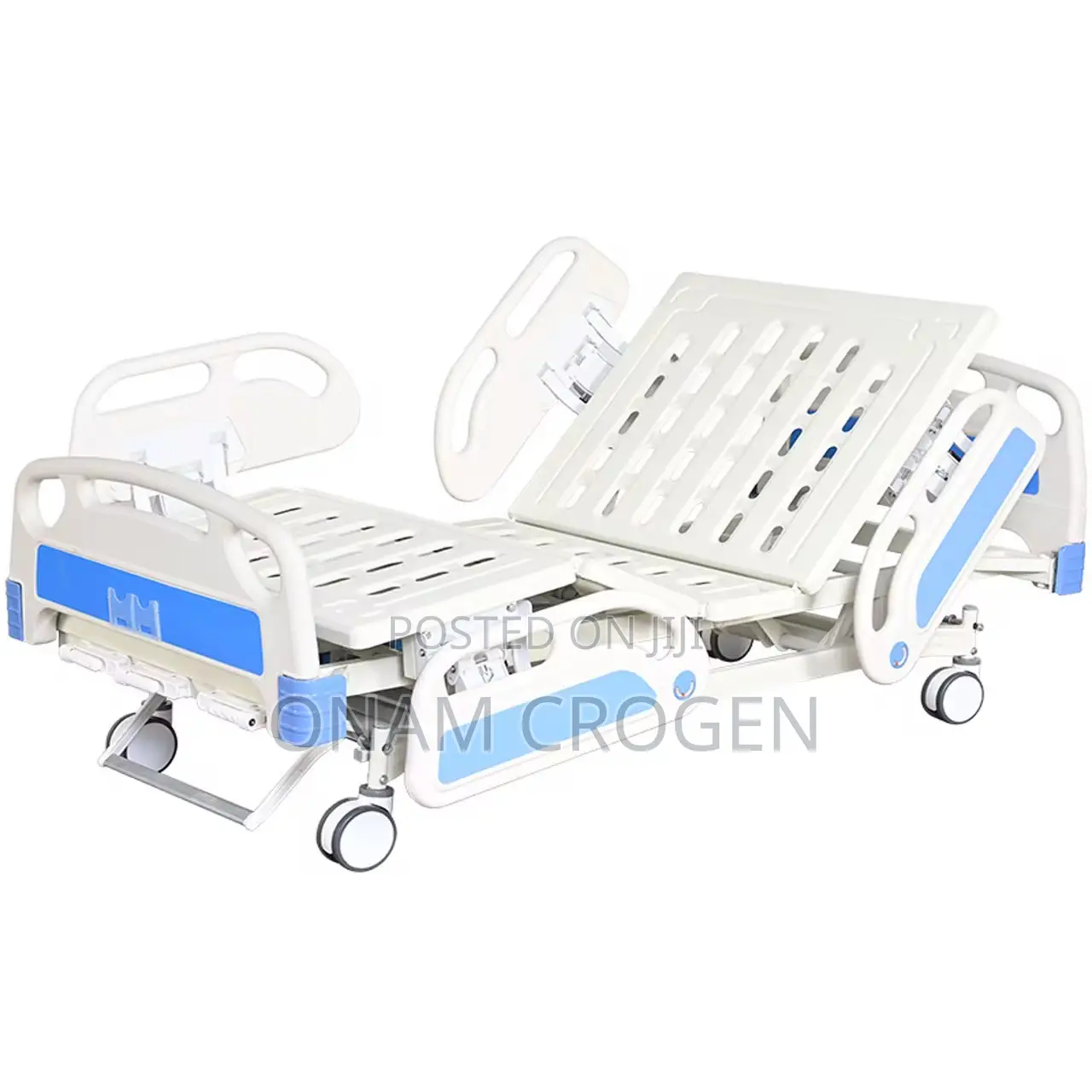

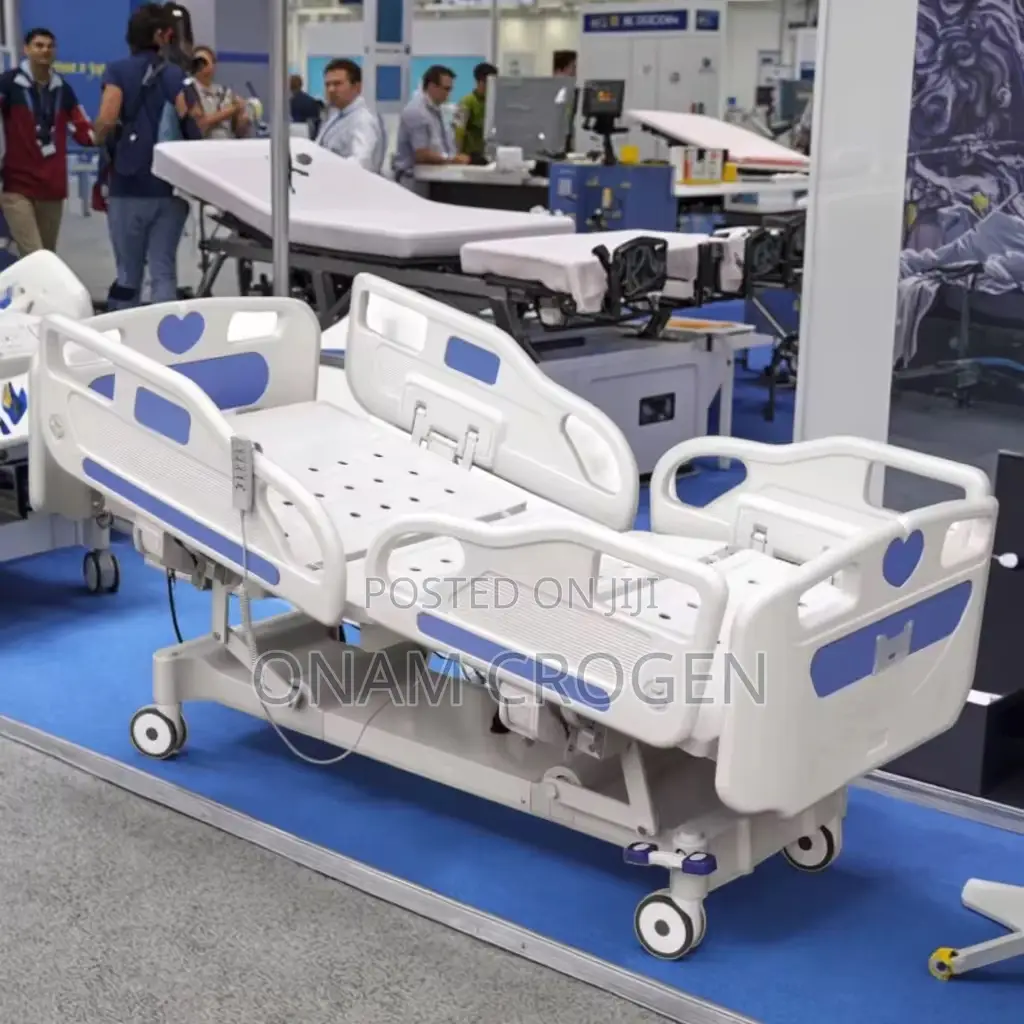

*Electric hospital bed
- *Type*: Motorized, 2/3/5 function
- *Frame*: CRCA steel, powder coated. ABS/SS head-foot panels
- *Functions*:
- *2-function*: Backrest 0-70° + Knee rest 0-35°
- *3-function*: + Height adjust 450-750mm
- *5-function*: + Trendelenburg/Reverse 0-12°
- *Bed size*: 2000×900mm standard
- *Mattress platform*: Perforated MS / wire mesh
- *Motor*: 24V DC, 6000N thrust, quiet <55dB
- *Controller*: Hand pendant + side rail controls
- *Side rails*: Collapsible ABS/SS, 4 sections
- *Castors*: 125mm dia, 4 with central brake system
- *Load capacity*: 200-250 kg safe working load
- *IV rod*: SS, 2 hooks, telescopic
- *Power*: 220V AC, battery backup 24-48hrs
- *Weight*: 120-150 kg
- *Standards*: IEC 60601-2-52, ISO
