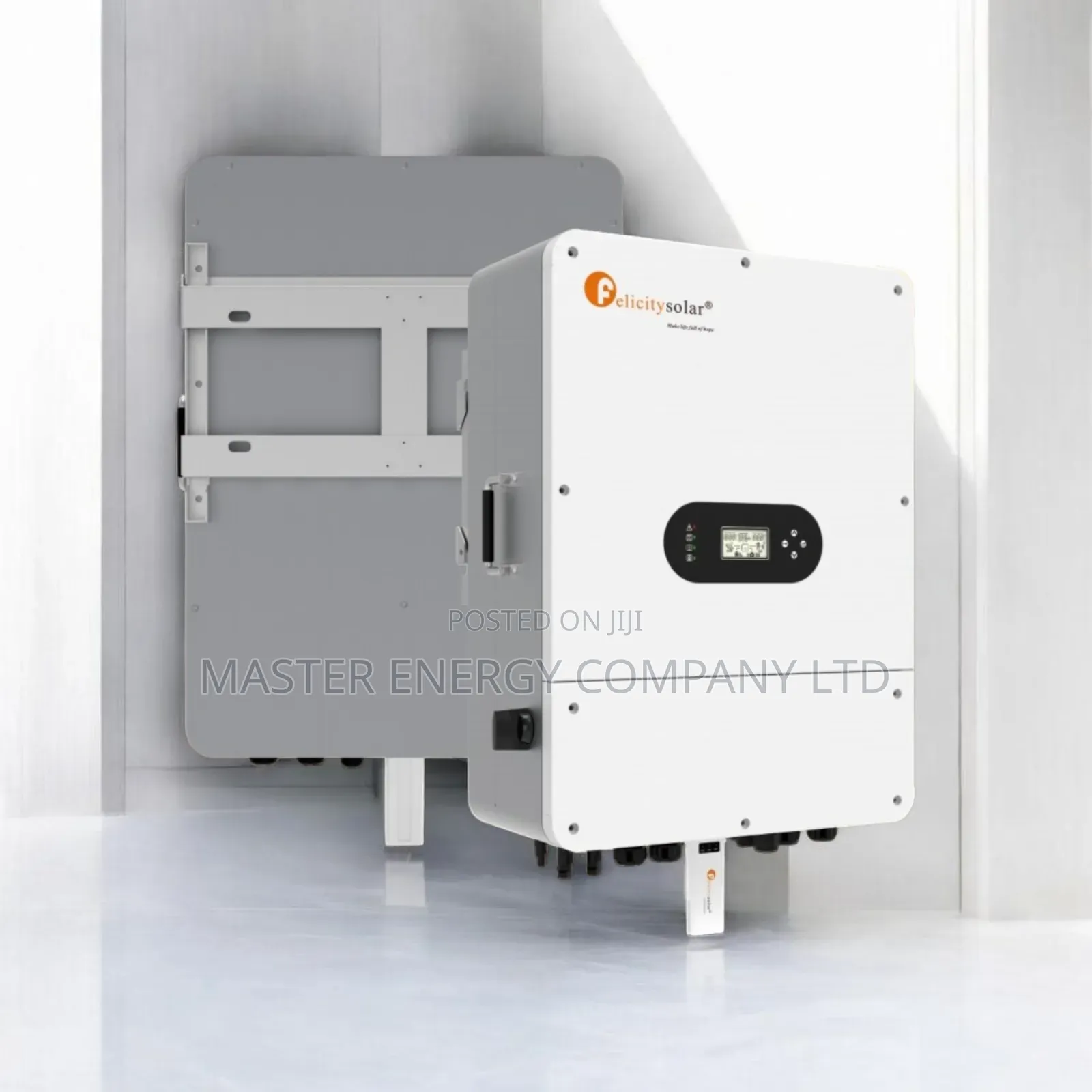

Felicity t-rex 10kva/10kw 48v 3-phase hybrid solar inverter t-rex-10klp3g01
rated power: 10kva / 10kw (3-phase output)
pv input capacity: supports up to 13,000w (13kwp)
battery system: 48v dc, supports lithium and lead-acid
mppt: dual mppts with 200–850v mppt range
maximum pv voltage: 900v
maximum efficiency: 97.6%
ac output voltage: 230/400v ac (3-phase)
charging/discharging current: up to 200a
protection rating: ip65 (indoor/outdoor)
monitoring: wi-fi/gprs, rs232/rs485/can with lcd + led display
