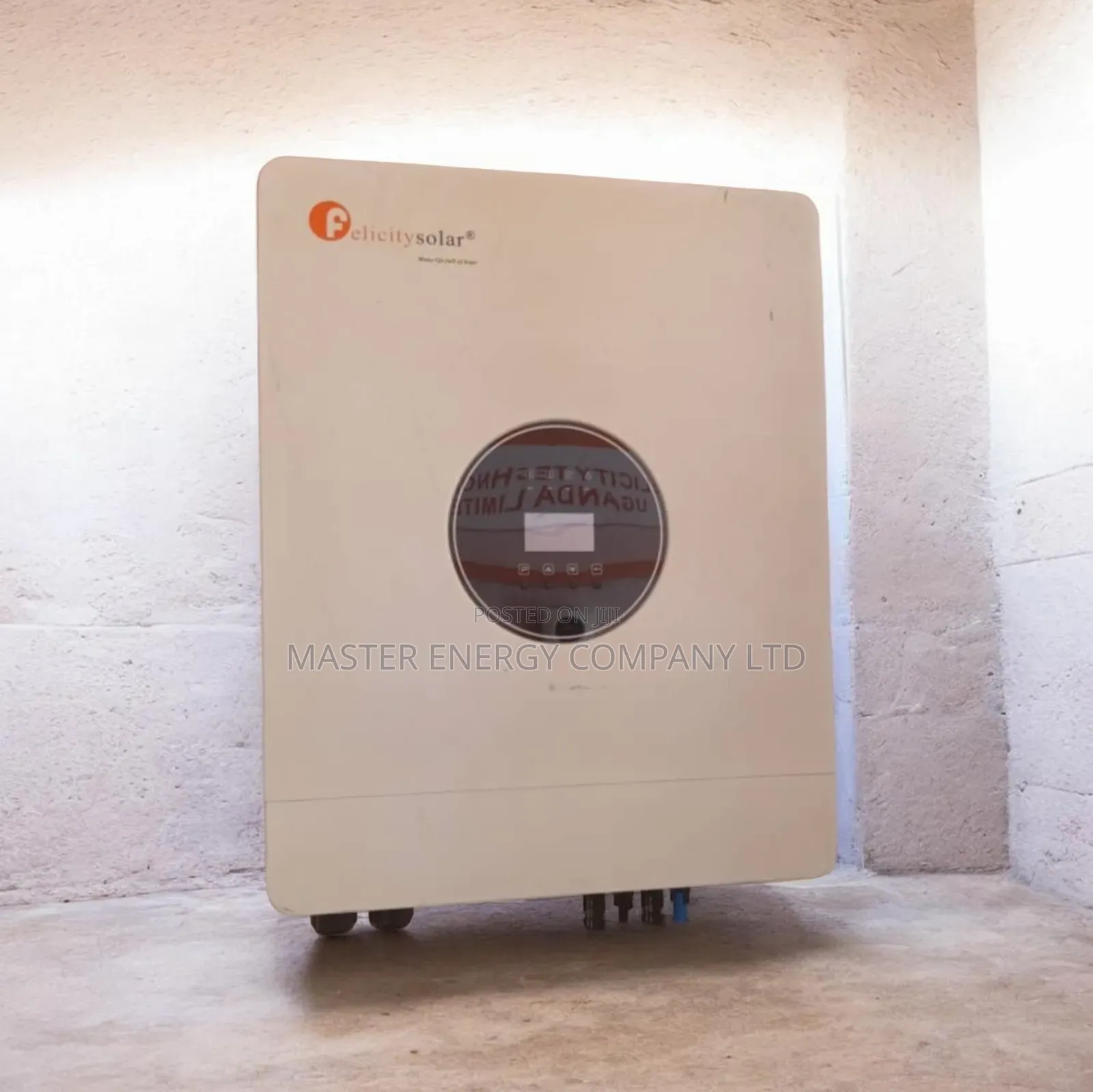

8kva 48v Hybrid Inverter Felicity Mahhs

+1

Felicitysolar

Brand

Inverters

Type

Hybrid Inverter

Inverter Type

50/60 Hz Auto

Frequency

Brand New

Condition

8000watts

Rated Power Output

8000watts

Peak Power

Store address

Kampala • Central Division

Kampala, Uganda

09:00-20:00

Felicity 8kva/8kw 48v hybrid inverter ivem8048 •model: ivem8048 •rated output power (va): 8,000va •rated output power (w): 8,000w •nominal dc input voltage: 48v •nominal output voltage: 230vac ± 5% •nominal input voltage: 230vac •max ac input voltage: 280vac •output frequency: 50hz / 60hz (auto-detection) •output waveform: pure sine wave •efficiency (line mode): >95% (rated load, battery fully charged) •peak efficiency: 93% •parallel capability: yes, up to 6 units •pass-through without battery: yes •solar charging & grid charging: •maximum pv open circuit voltage (voc): 500v •pv voltage working range: 90v – 450v •max input power: 8,000w (5,000w for single pv input) •max solar charging current: 150a •max charging current (pv + grid): 150a •max input current: 20a × 2 (max 40a) •min startup voltage: 90v
