Dc Circuit Breaker 63A

+1

Solar

Brand

Circuit Breakers & Disconnectors

Type

2

Number of Poles

63amps

Breaker Amperage

500kA

Capacity of Breaker

Brand New

Condition

Store address

Kampala • Central Division

Energy centre building room(E60) second floor

Email: Tel Or energy centre market street

Closed now

• Mon - Sun, 06:00-08:00

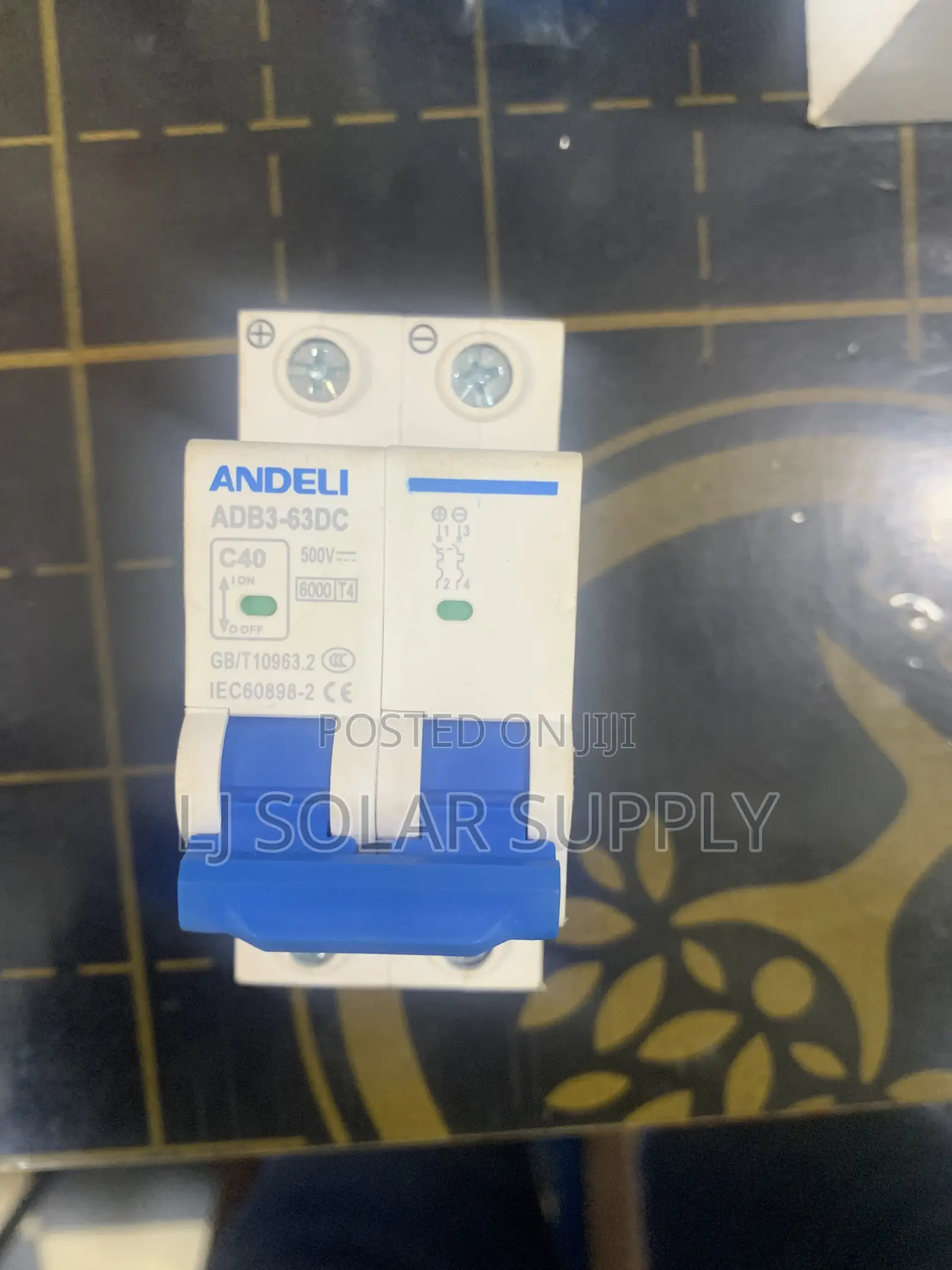

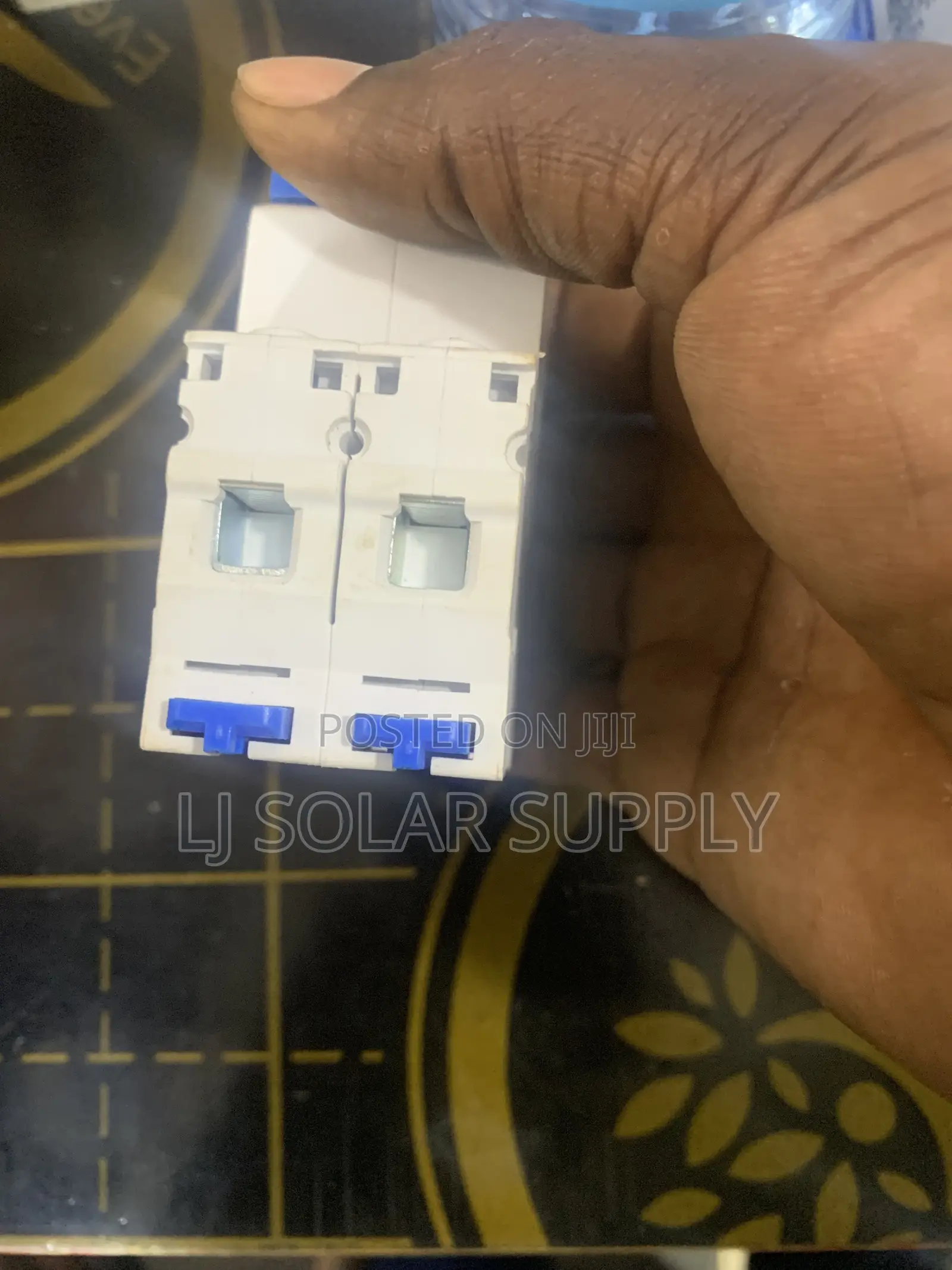

Use it for: • Between solar panels and MPPT inverter - For 2-4 panels in series • Example: 3x 550W panels = ∼150V 14A - This C40 500V is perfect • Or 6x panels 550W in 2 strings (2x 3 series) - Use 2x of this breaker How to wire (critical - DC is polarized): • Top: + from panels, - from panels (screws with + and -) • Bottom: To MPPT / inverter PV input • Blue switch UP = ON, DOWN = OFF • Mount on DIN rail in your DB box What it protects: • Short circuit from panels • Overcurrent if panels overproduce • Lets you switch off solar when doing maintenance - Don't disconnect MC4 under load, switch off this breaker first.
