Solar Charge Controller 12/24v LCD Solar Panel Battery Regulator 10a
1/6
+ 1
images
Promoted
Kampala, Central Division, 2 hours ago
41 views
Solar Charge Controller 12/24v LCD Solar Panel Battery Regulator 10a
+1
1
Other
Brand
Charge Controllers
Type
Brand New
Condition
12amps
Maximum Current
12 V, 24 V, 48 V
Rated Voltage
Store address
Kampala • Central Division
Equatorial Mall
Open
• Mon - Sat, 08:00-18:00
Function: It regulates the power flow from the solar panels to the battery, preventing overcharging and over-discharging to protect the battery and extend its lifespan.

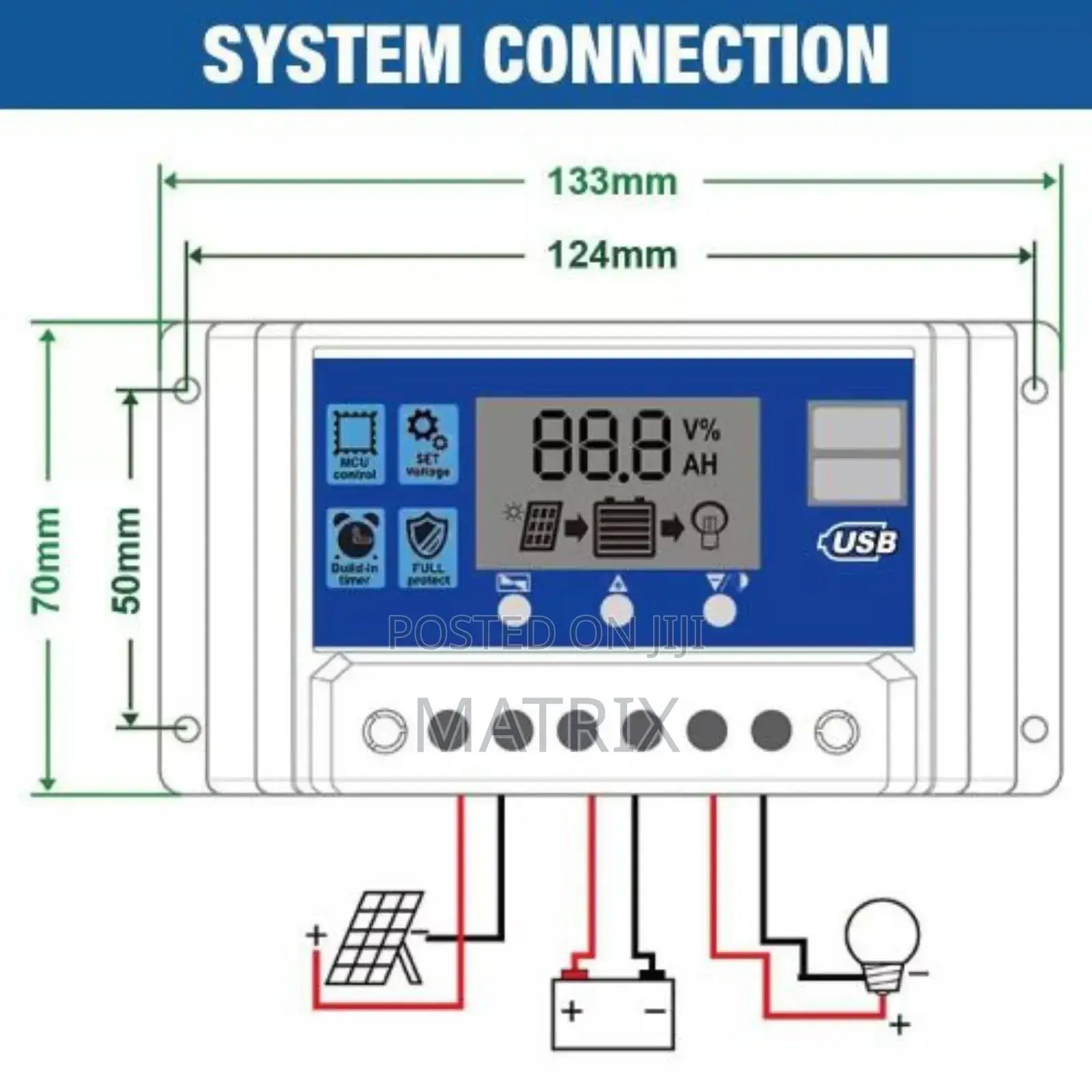

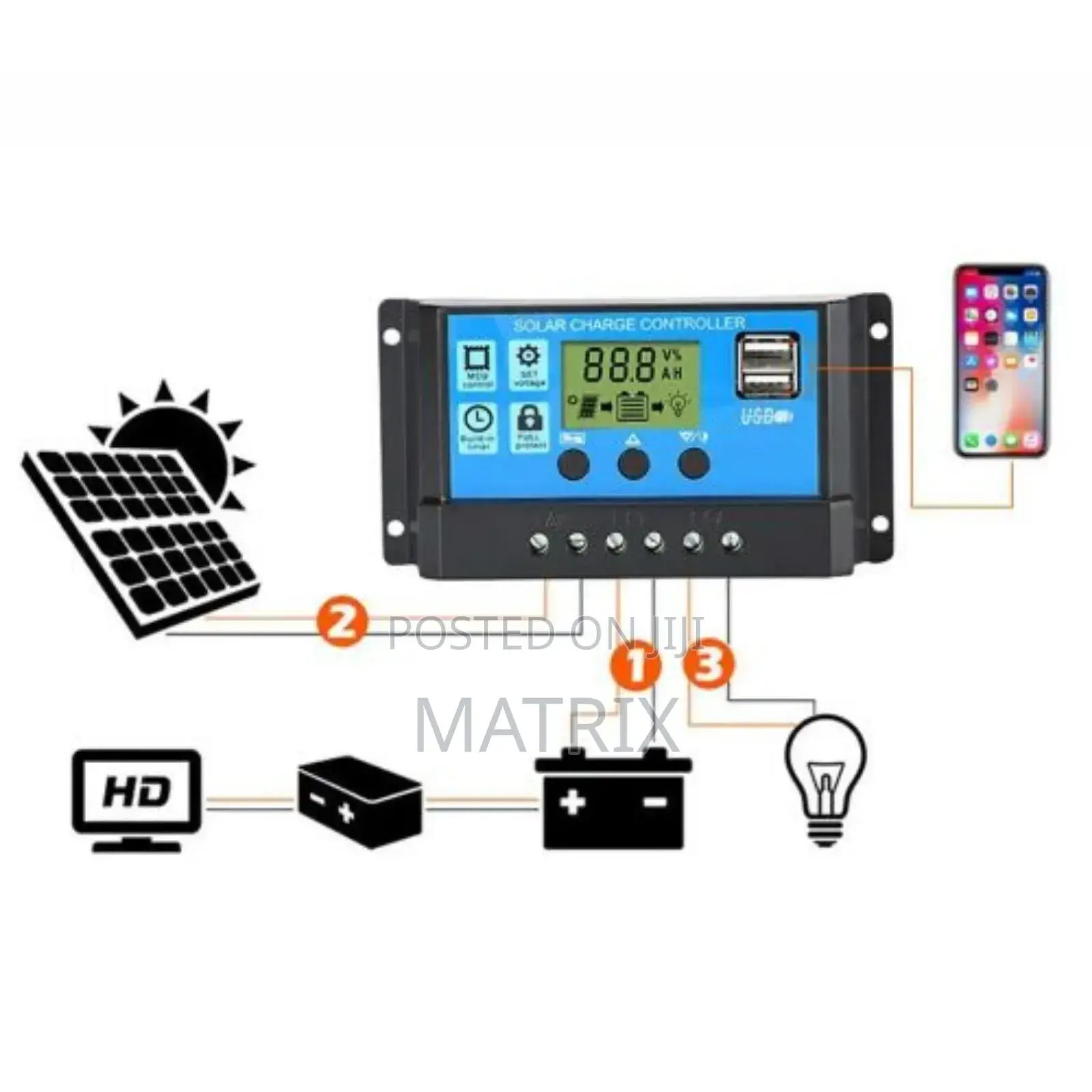

Connection: The diagram shows connections for:
Solar panel input (left side, red and black wires)
Battery connection (middle, red and black wires)
DC load output (right side, red and black wires for the light bulb)

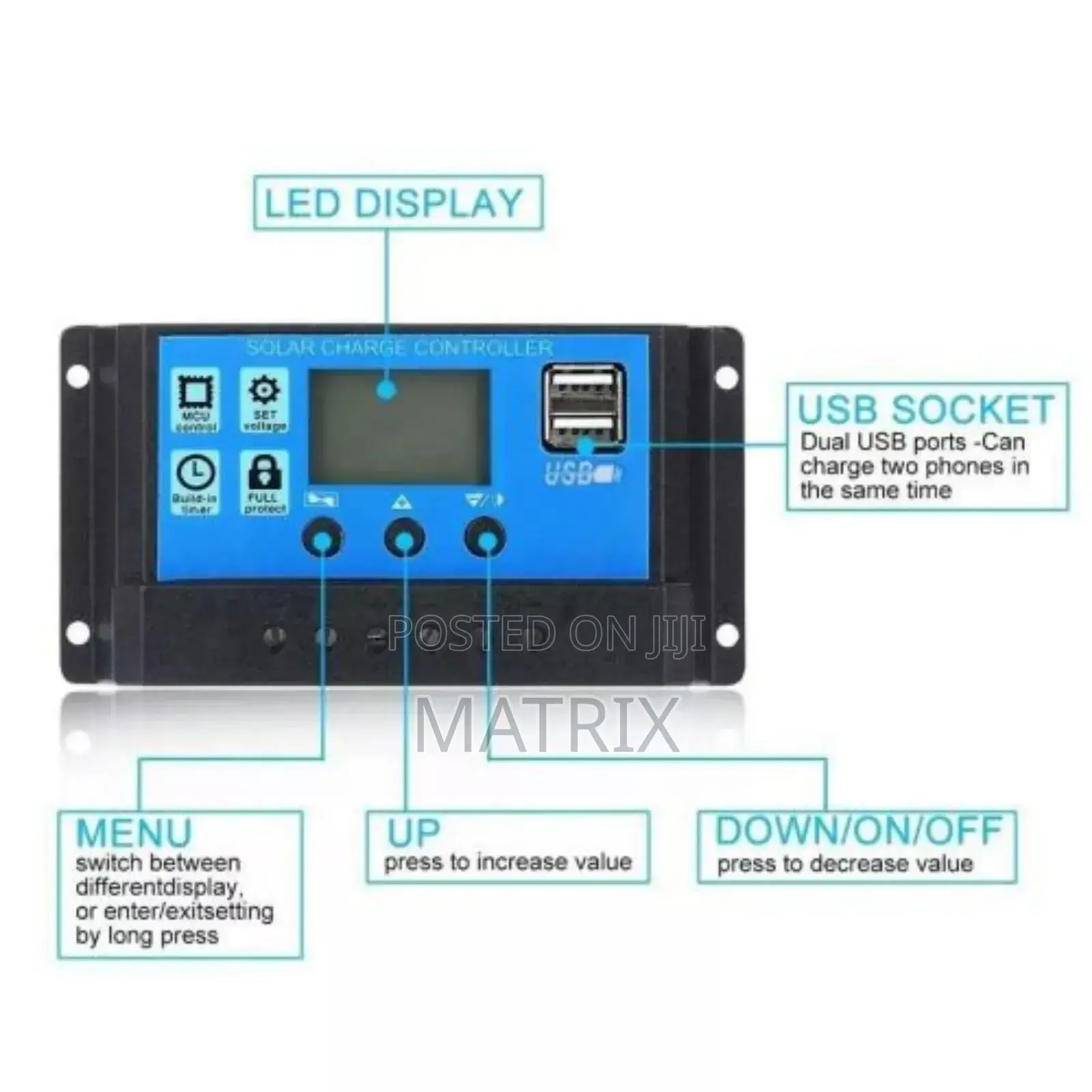

Features: The LCD screen indicates features such as battery voltage display, charging status, load status, and potentially adjustable power rates.

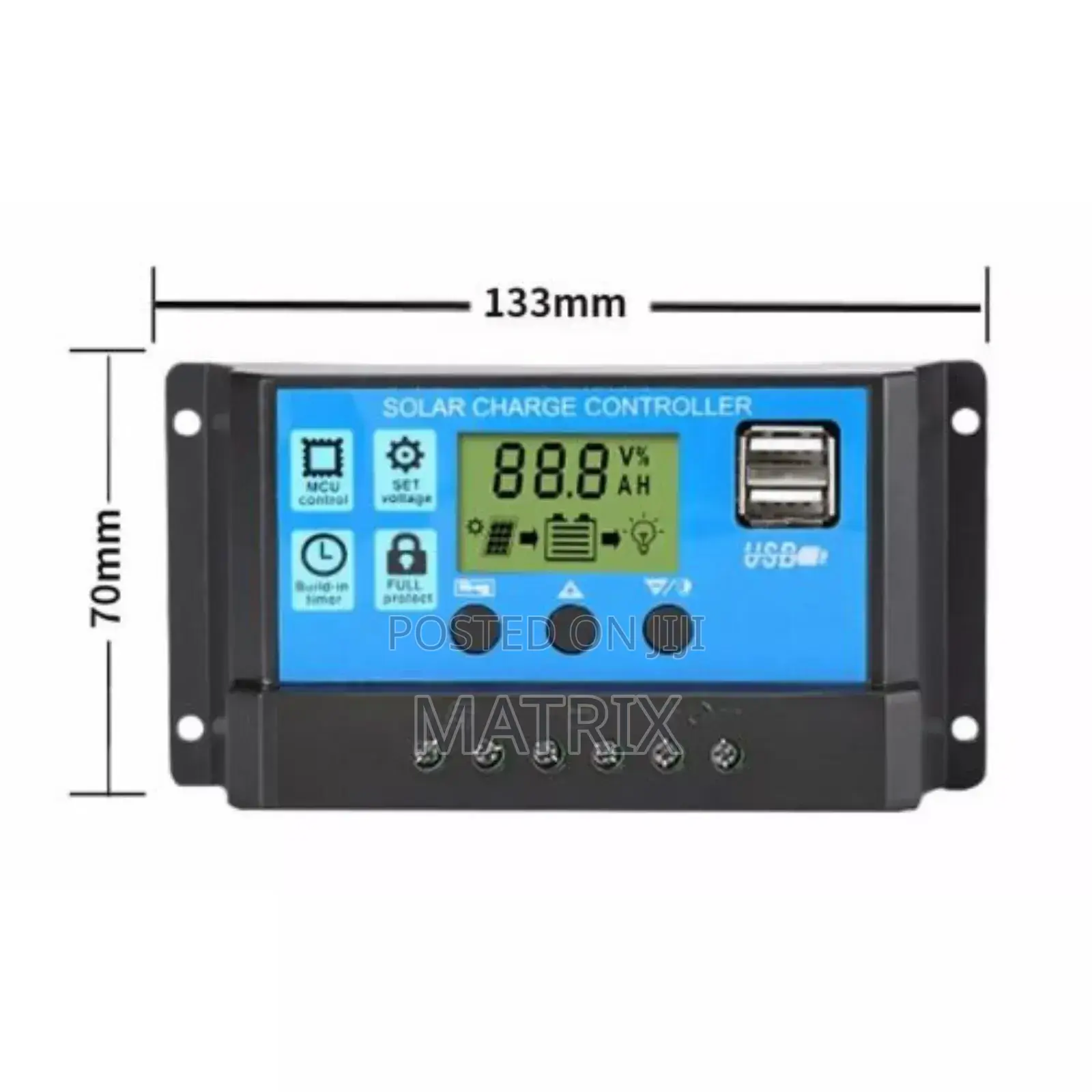

Dimensions: Key dimensions for the unit are provided as 133mm, 124mm, 70mm, and 50mm.
