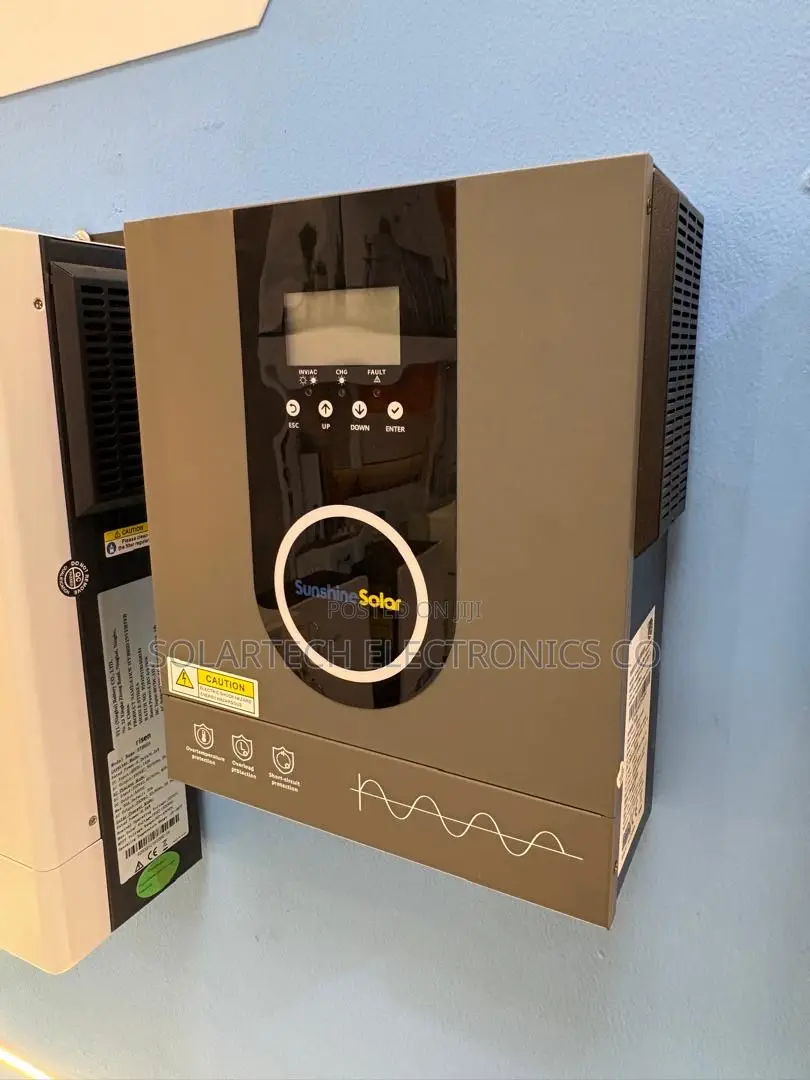

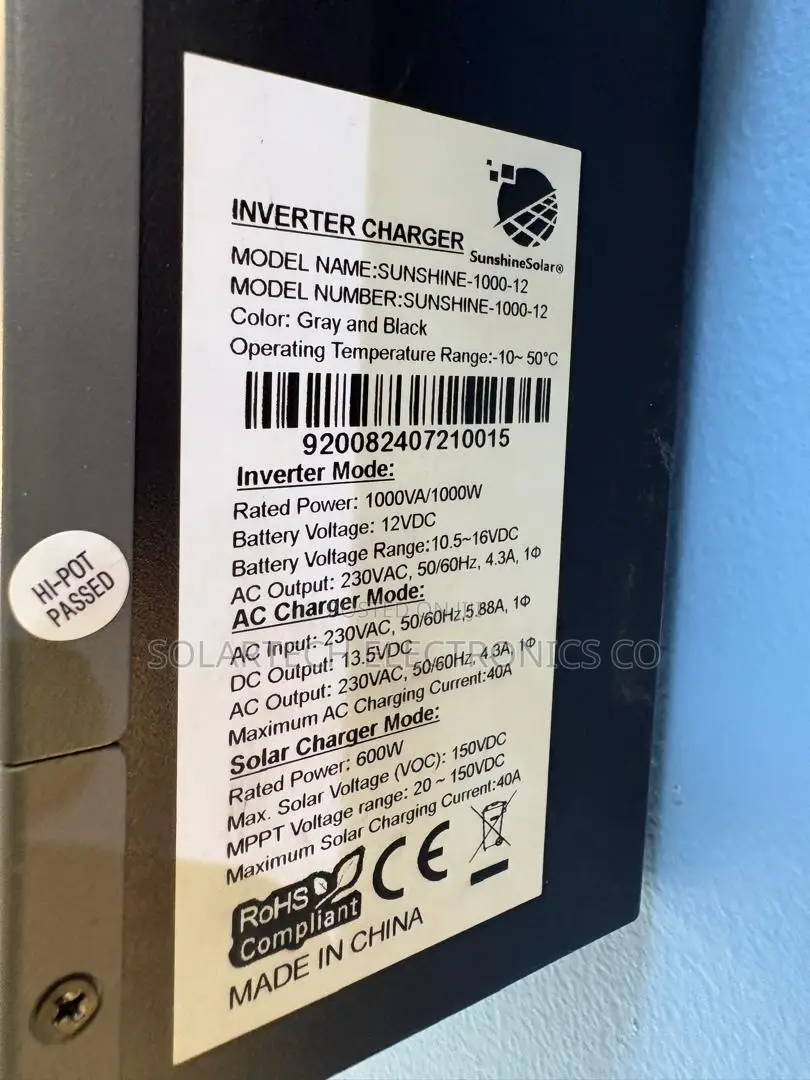

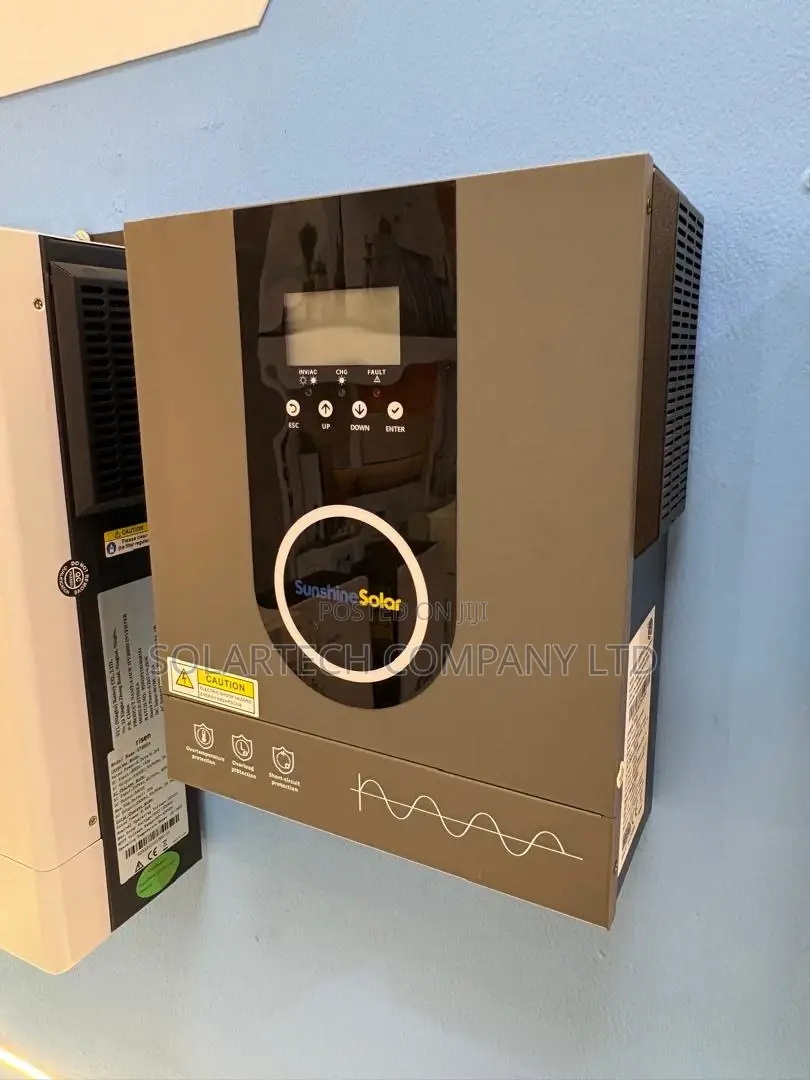

The sunshine sunshine-1000-12 hybrid inverter charger combines solar charging, ac charging and dc-to-ac power conversion in one reliable unit. it has a 1000va/1000w rated power and operates with a 12vdc battery. the supported battery voltage range is 10.5–16vdc. its ac output is 230vac, 50/60hz, single phase, with a rated output current of 4.3a. the ac charger accepts 230vac, 50/60hz input and provides 13.5vdc output, with a maximum ac charging current of 40a. solar charging is supported up to 600w, using an integrated mppt controller with a 20–150vdc operating range, 150vdc maximum pv voc, and 40a maximum solar charging current. operating temperature: -10°c to 50°c.
