Repair of an Internal Chassis of an Led Smart Tv
Electronics
Direction
TVs
Electronics Type
Repair
Type of Service

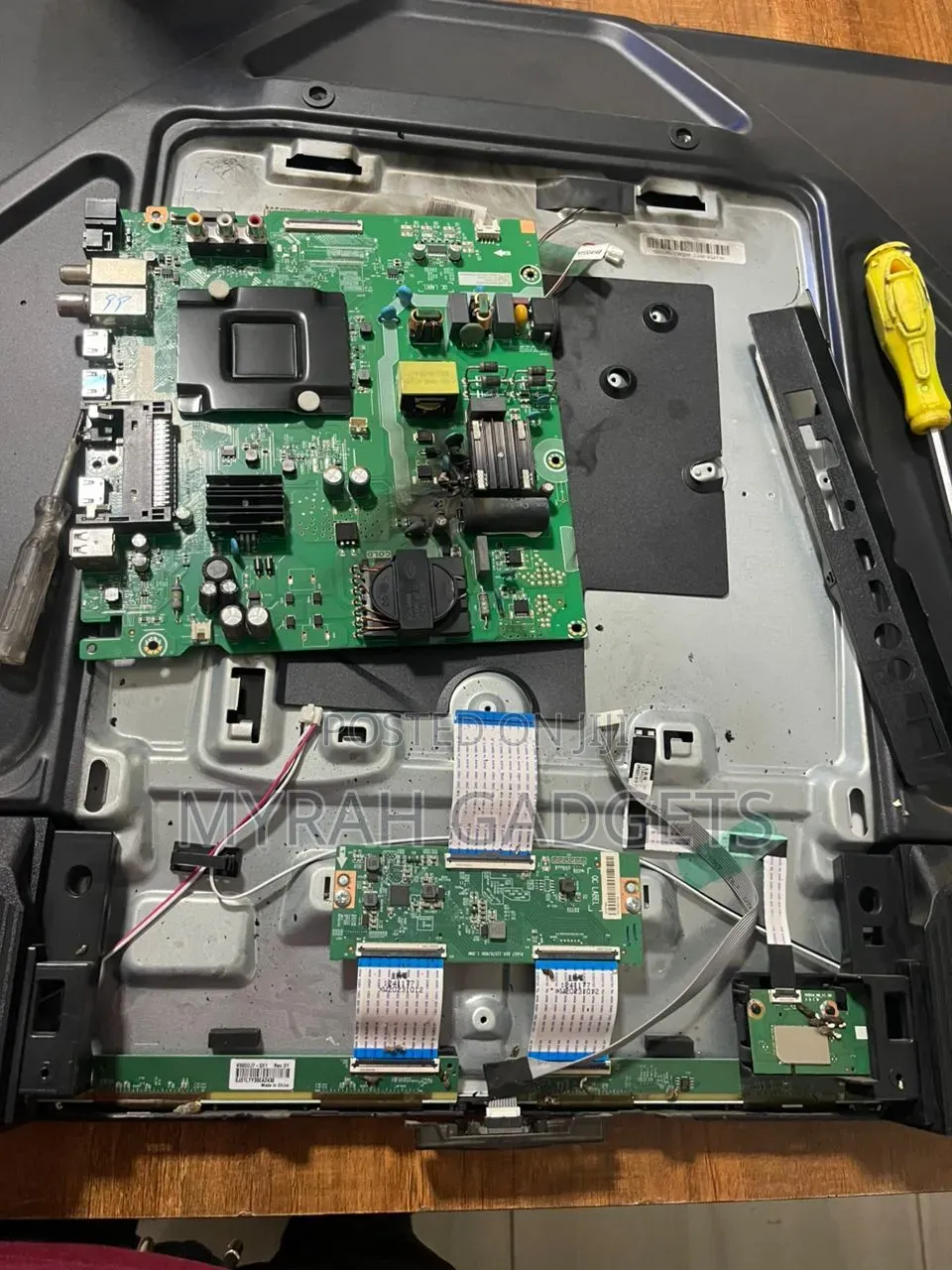

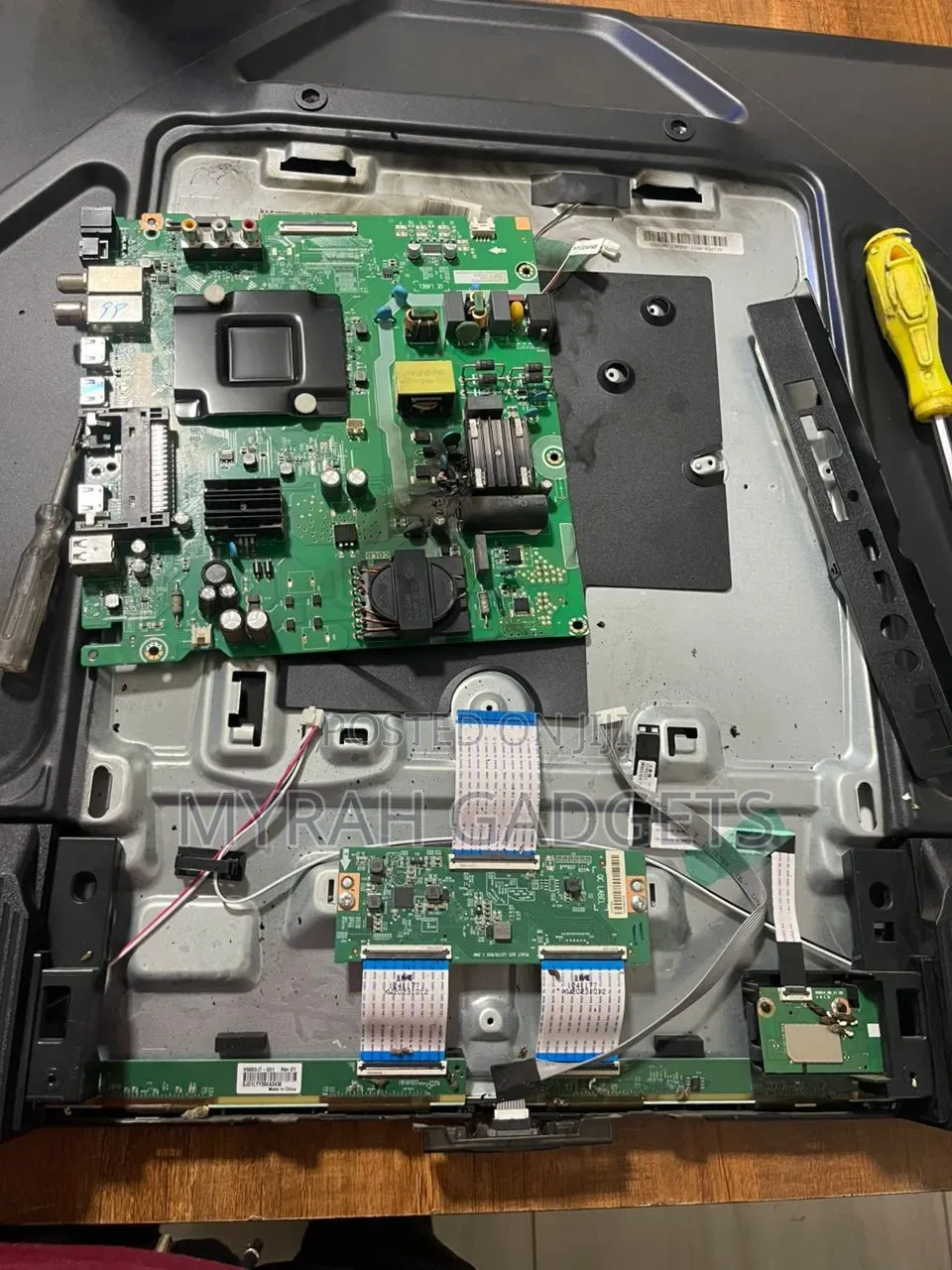

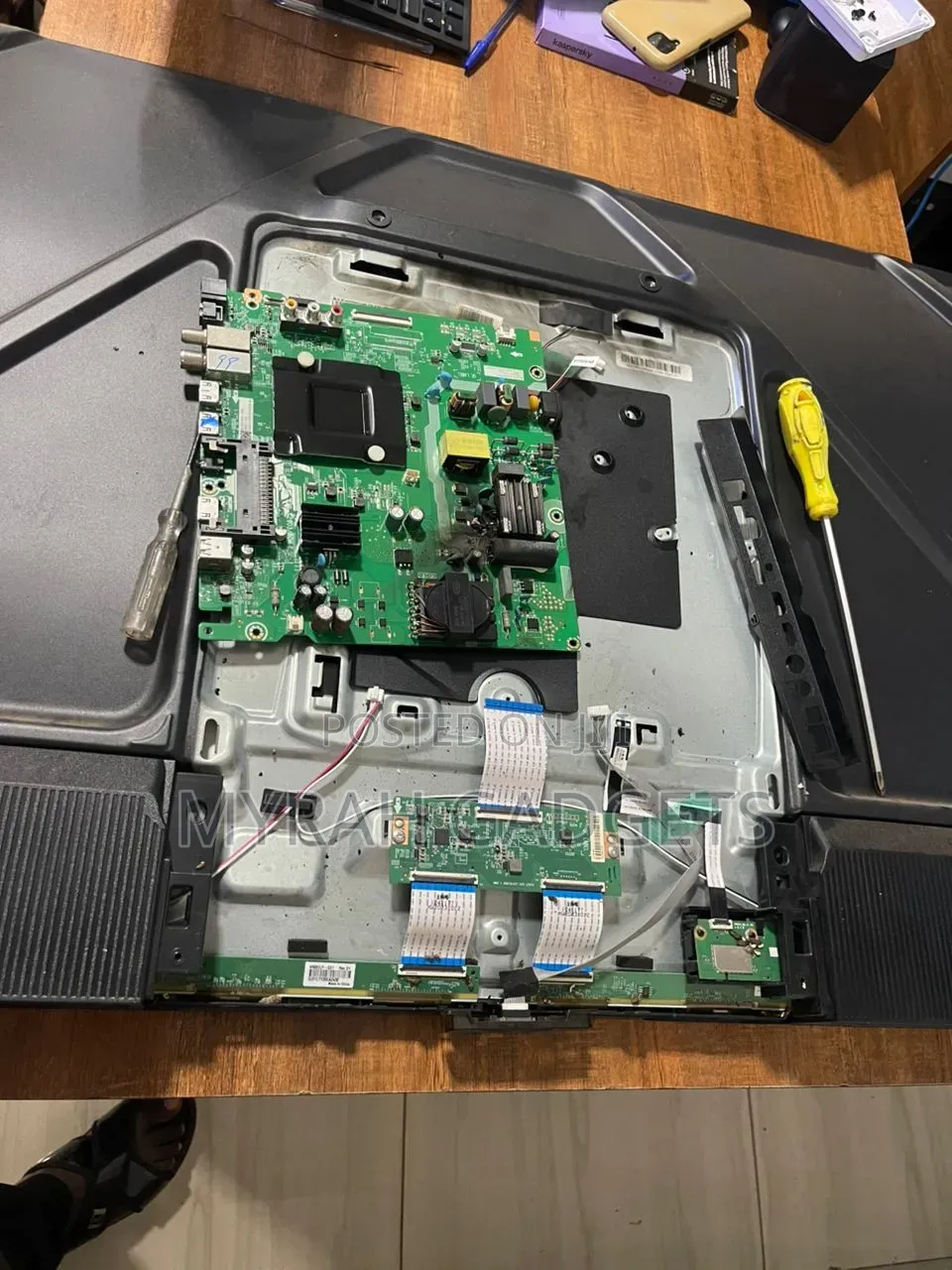

Main Combo Board (Top Left Green PCB): This serves as a shared Main Board and Power Supply Unit (PSU). The left side holds the external input/output interface ports (HDMI, USB, Tuner, AV inputs). The center and right sides contain the high-voltage "HOT" transformer section, rectifiers, filter capacitors, and heat-sinked components that regulate incoming AC power into low-voltage DC rails.T-Con Board (Lower Center Small PCB): The Timing Control board acts as the logic translation bridge. It receives processed video signals from the main board via the top ribbon cable and splits them into distinct horizontal/vertical matrix columns via the two bottom ribbon cables.Driver Boards (Bottom-most Horizontal Green Strips): These distribution boards route the digitized signals directly into the thin-film transistor (TFT) glass liquid crystal panel.
