Large-Scale Modular Barrel Vault Steel Truss Skeleton /

+1

shade

Type

Other

Outer Covering Material

Store address

Wakiso • Kira

Jinja rd opposite Shell Namanve Next to Total Namanve, Kampala

Open now

• Mon - Sat, 07:30-19:00

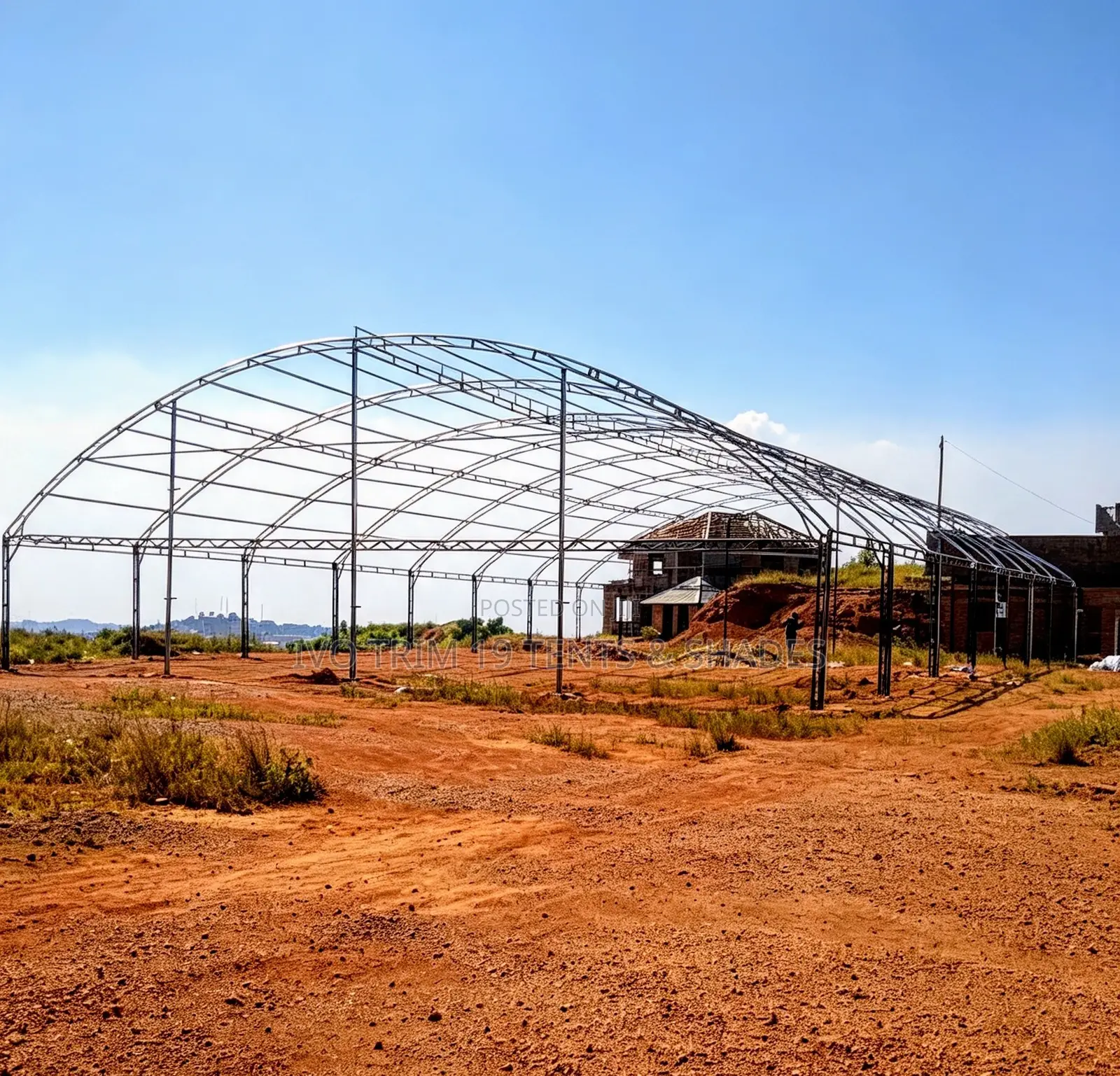

Features a high-clearance curved arch (barrel vault) profile supported by heavy-duty lattice trusses. Designed as an unclad, clear-span structural framework featuring repeating bay modules to maximize interior floor area without internal load-bearing columns. Technical Specifications Structural Framework: Heavy-duty hollow structural section (HSS) tubular steel or galvanized steel lattice trusses. Utilizes welded webbing, horizontal purlins, and longitudinal tie-bars for wind loading and structural rigidity. Multi-bay modular layout assembled with vertical lattice column legs linked to curved, segmented roof trusses via bolted flanged connections.
