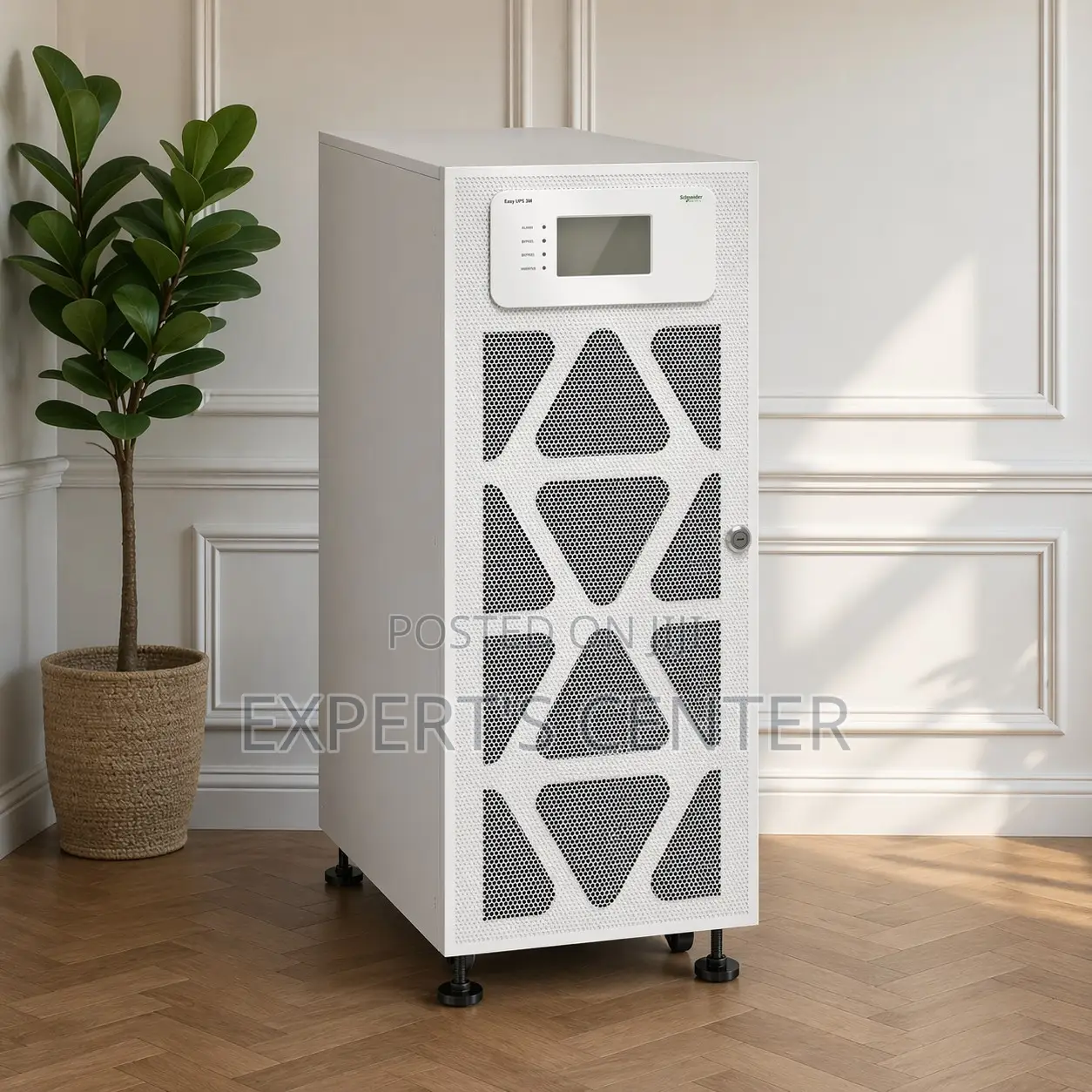

Apc E3mups100khs 100 Kva3 Phase 3:3

+1

UPS (Vifaa vya Umeme visivyoingiliwa)

Aina

APC

Chapa

E3MUPS100KHS

Mfano

4

Idadi ya Maduka

100Ah

Uwezo wa Betri

100000watts

Wattage

100000VA

Nguvu ya UPS

6hours

Muda wa Kuchaji betri

60min

Nusu ya Muda wa Juu wa Pakia

30min

Muda Kamili wa Kukimbia wa Mzigo

4cm

Urefu wa kamba

Chapa Mpya

Hali

Main Input Voltage 400 V AC 3 phases Input voltage 380 V 415 V Maximum input current 177 A Max short time withstand current 10 kA Input harmonic distortion Less than 3 % for full load Load power factor 0.5 leading to 0.5 lagging Cos phi 0.99 Input voltage limits 342.477 V Number of input connectors 1 hard wire 5-wire (3P + N + E) Network frequency 40.70 Hz Output voltage 400 V AC 3 phases Output voltage 380 V 415 V rated power in VA 100 kVA Bypass type Built-in static bypass Crest factor 3 : 1 Harmonic distortion Less than 3 % Maximum configurable power in VA 100 kVA Output harmonic distortion < 3% linear load and < 5% non-linear load Output overload operation 10 minutes at 125% and 60 seconds at 150% UPS type Double conversion online Wave type Sine wave Output frequency 50 Hz sync to mains 60 Hz sync to mains
