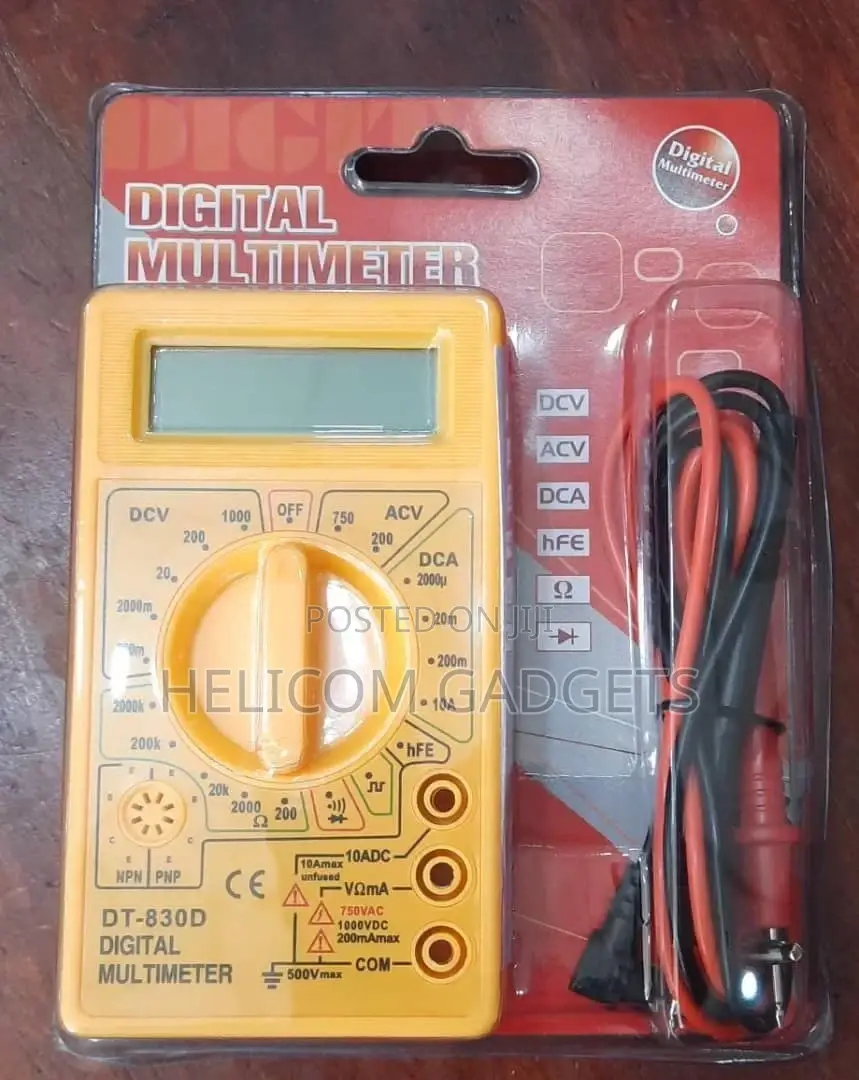

Digital Multimeter

+1

3

Meter

Aina

Chapa Mpya

Hali

Features: the meter is a held 31/2 digital multimeter for measuring dc and ac voltage,dc and ac current,resistance,diode,transistor specifications: display: blue back-light lcd, 1999 counts, updates 2-3/sec measuring method: dual-slope integration a/d converter operating environment: 0 to 40 °c power: 9v battery, neda 1604 or 6f22 type(not included) fuse protection: 200ma/250v size: 138mm x 69mm x 31mm weight: approx. 280g dc voltage: measurement range 200vmv-600v ±0.5% of rdg ± 2 digits overload protection: 250v av voltage: measurement range 200v-600v ±1.2% ± 10 digits overload protection: 600vdc or dc current: measurement range dc 2000-10a ±1% of rdg ± 2 digits overload protection: f 200ma/250v fuse (10a range resistance: measurement range 200 ohms - 2m ohms ±0.8% of rdg ± 3 digits maximum open circuit voltage: 3.2v overload protection: 250vdc or rms transistor: measurement range hfe test package included: 1* digital multi meter 1 set of test leads 1* user manual
