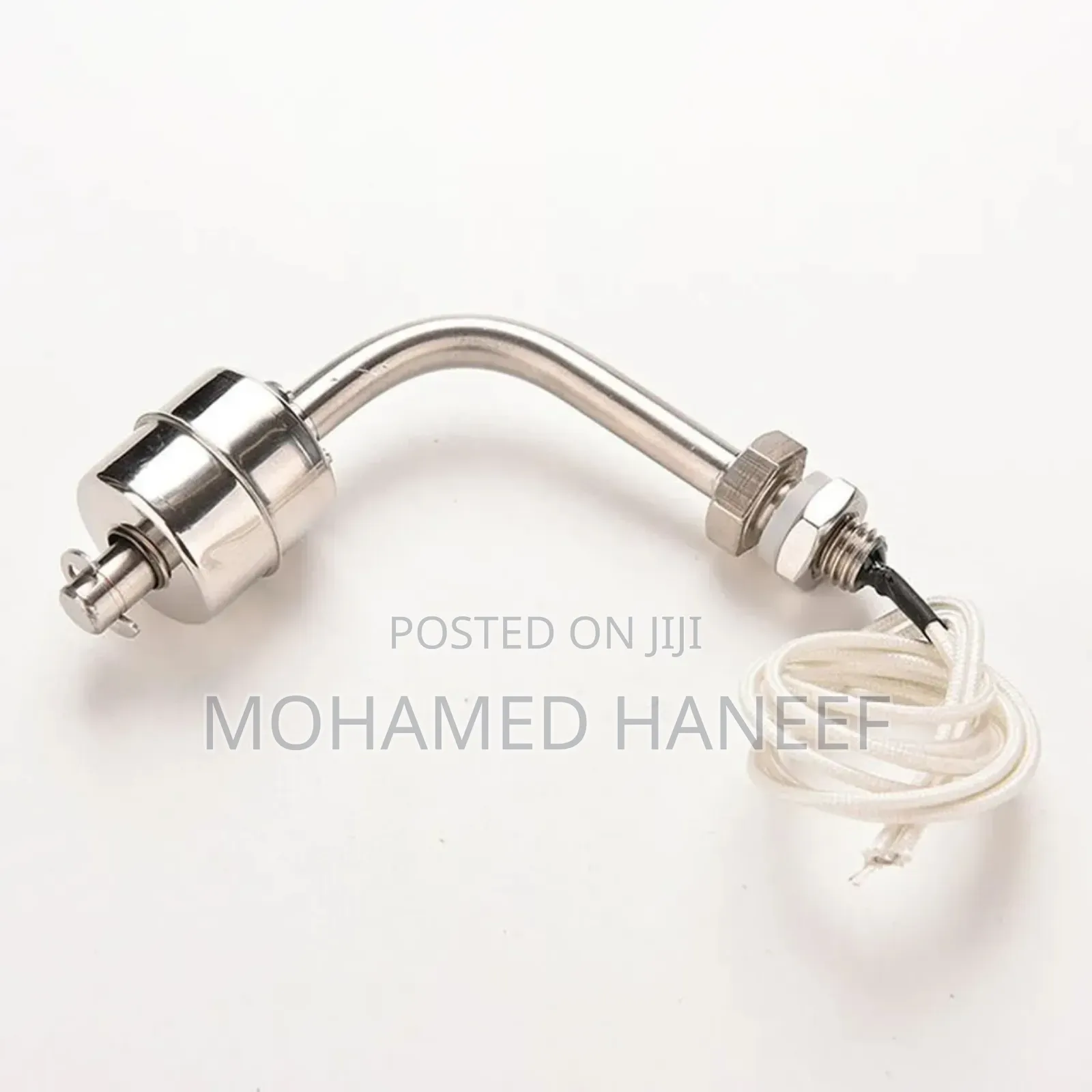

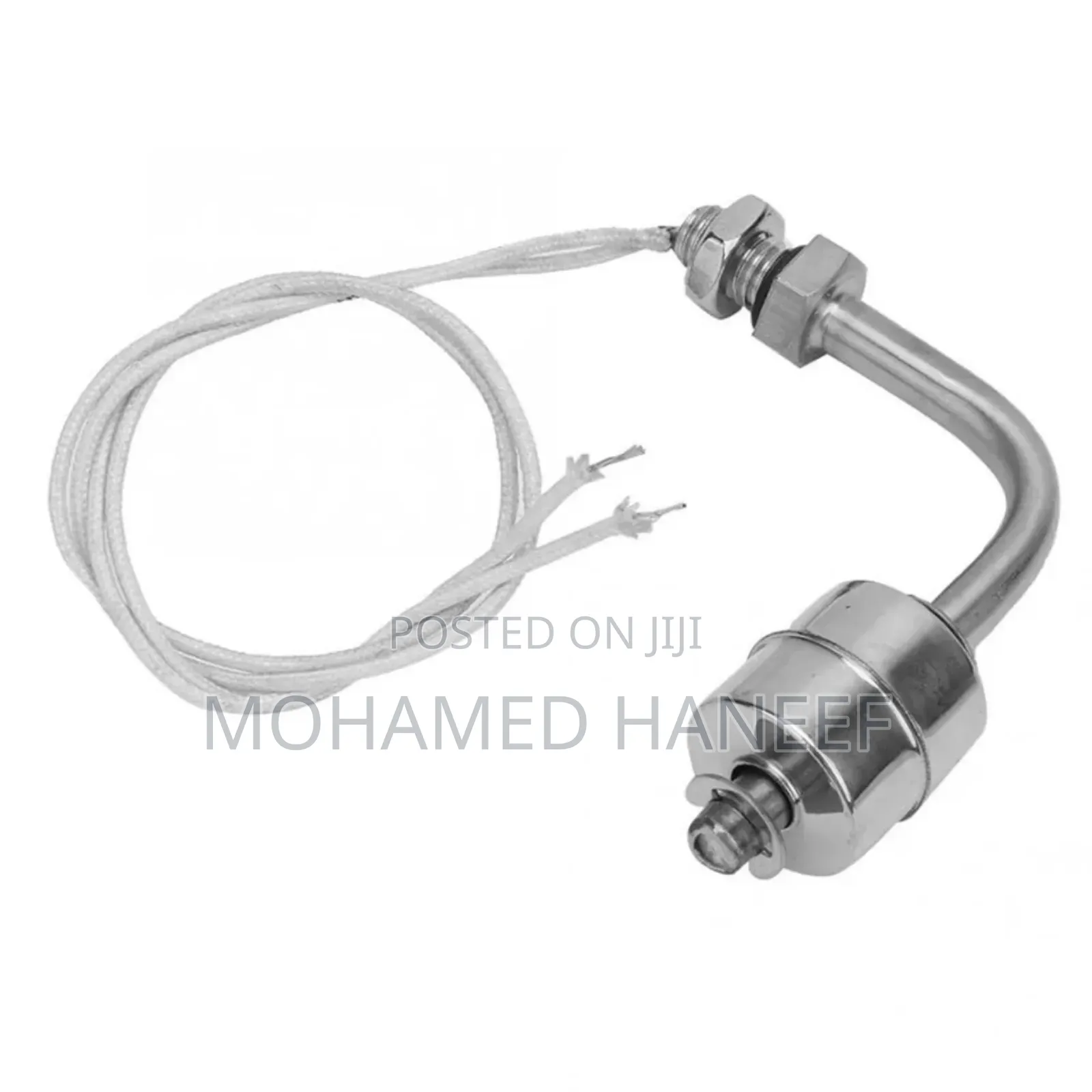

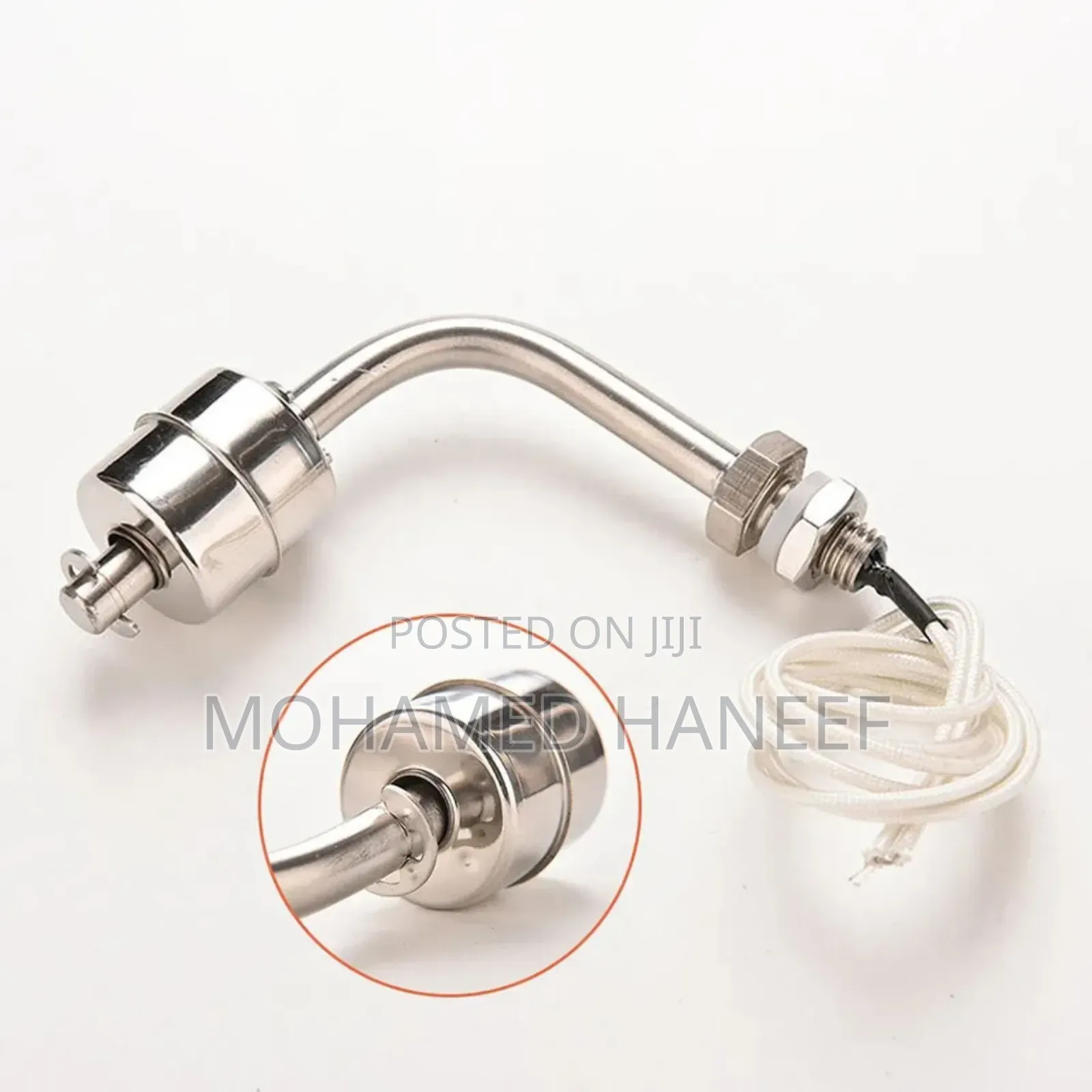

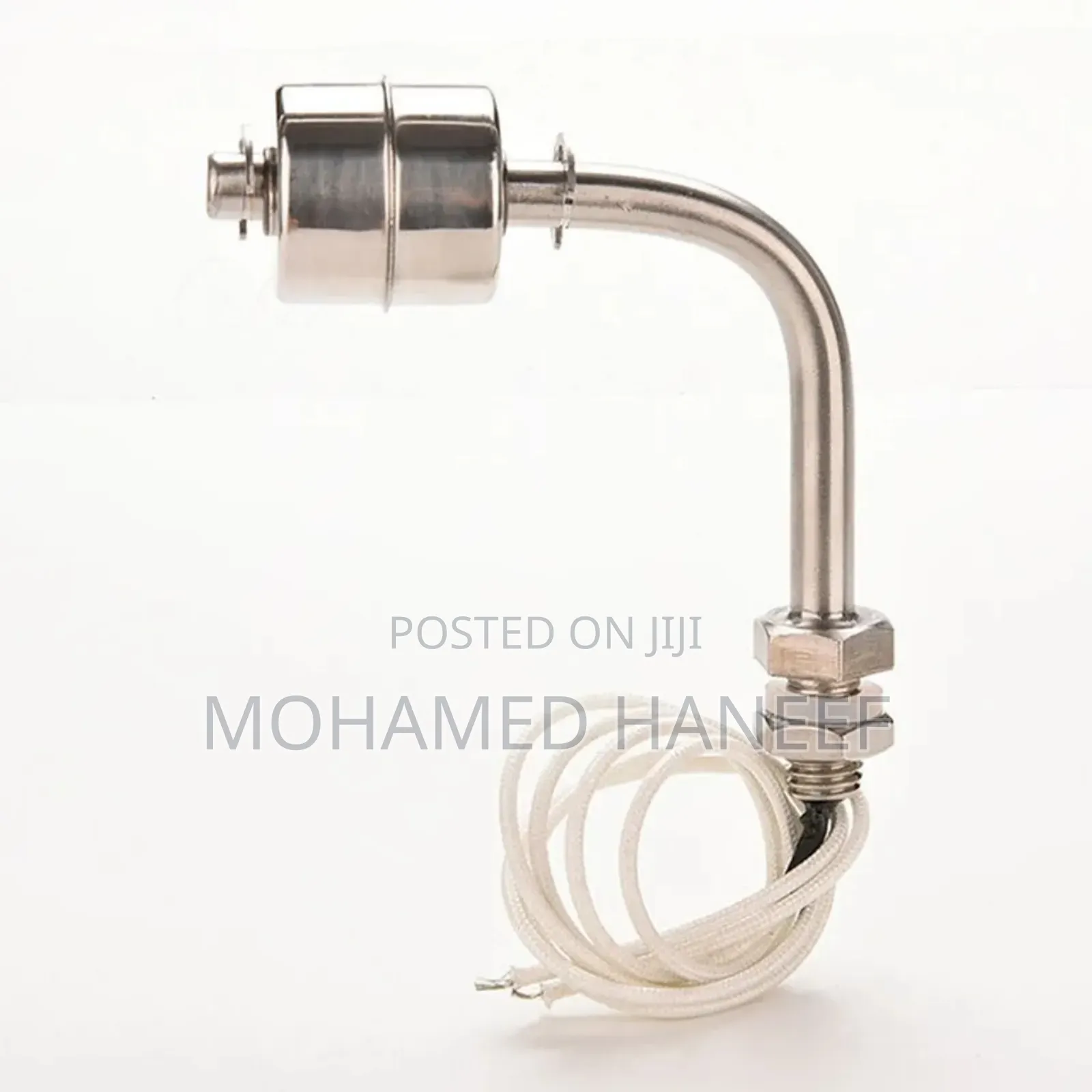

Stainless Food Grade Liquid Level Sensor
Chapa Mpya
Hali
Other
Chapa
Mita ya Kiwango cha Maji
Aina
210V
Volteji
1m
Urefu

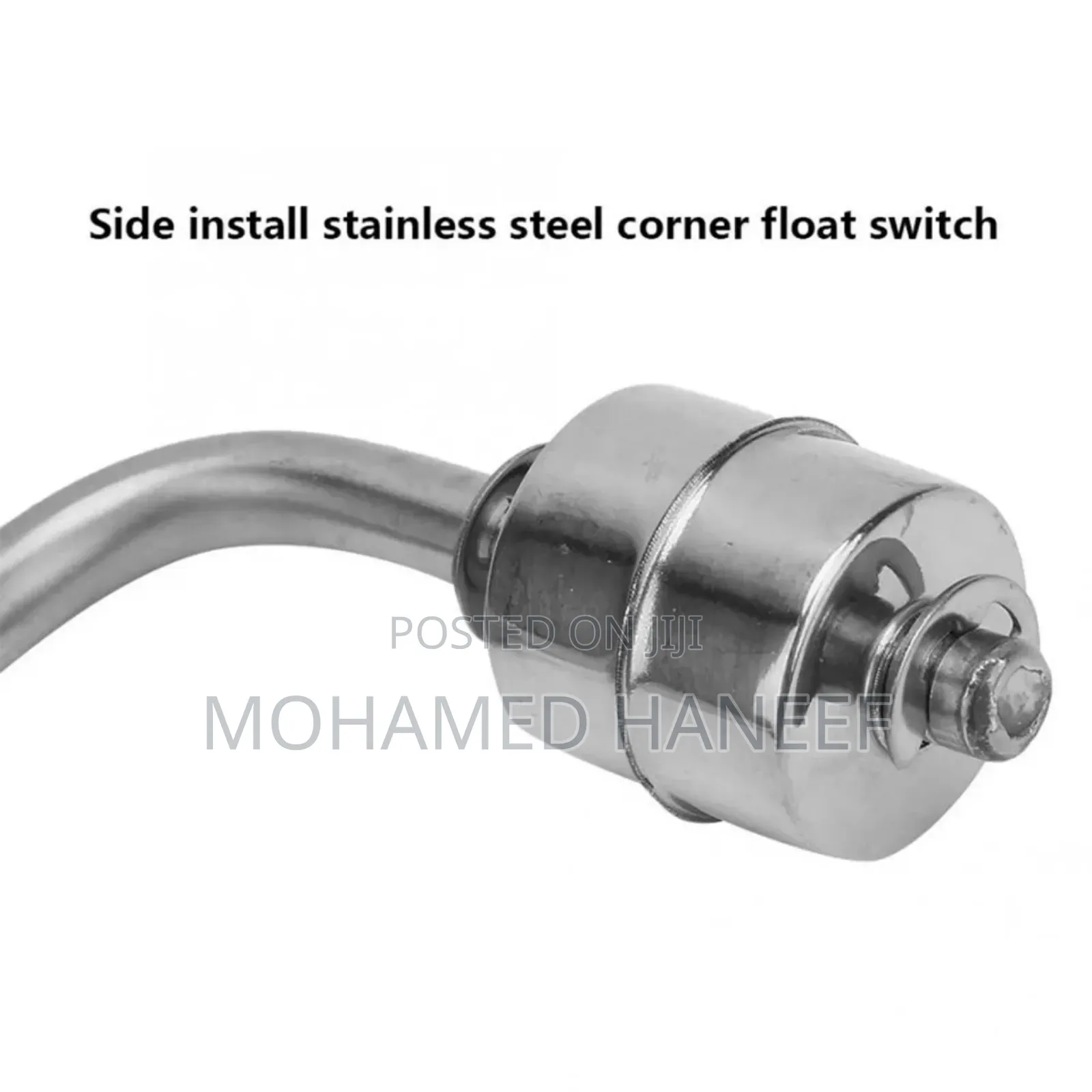

Floating ball is all stainless steel 304 material
floating ball switch can be
used in 0-110V DC voltage circuit.
Or AC 0 ~ 220V, DC 0 ~ 200V line.
long-term withstand temperature 120 degrees.
Floating ball switch can not directly control solenoid valve or high-power relay, AC contactor and so on.
Add a small relay to make the transition.

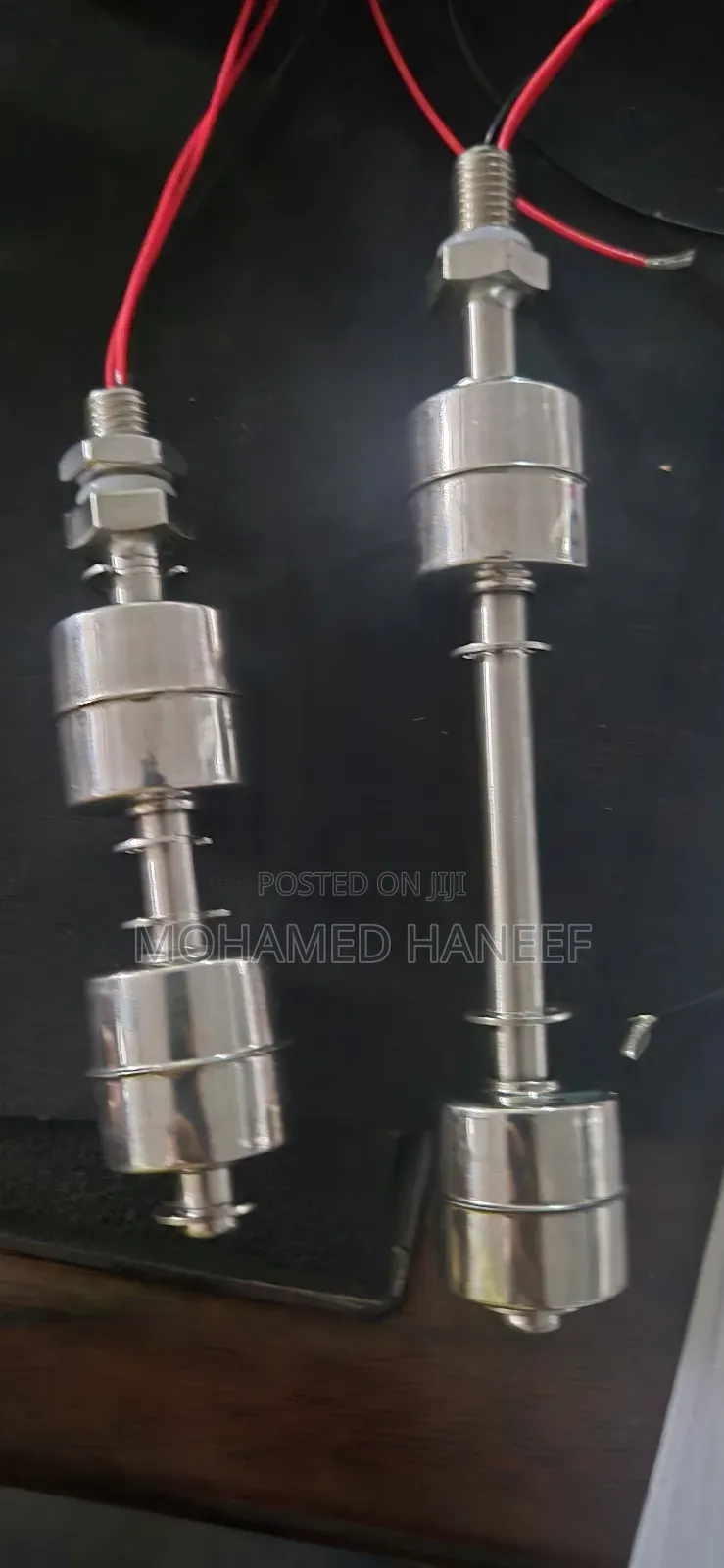

Floating ball travel 10mm, that is, the control
range 10mm, if the control range can be large 2
combinations,1 long and 1 short installation.
Specification:
Working voltage :0 ~ 220 V
Working current: 0.5-1 A HAREEF
Material :SUS304 & SUS316
Operating temperature:0 ~ 120 °C
Maximum temperature tolerance 120 °C
Working Pressure :1 Mpa
Maximum withstand pressure :5 Mpa
Maximum power: low voltage: 10W
High voltage: 50W
Maximum switching current: low voltage: 0.5A
High voltage: 1.5A
